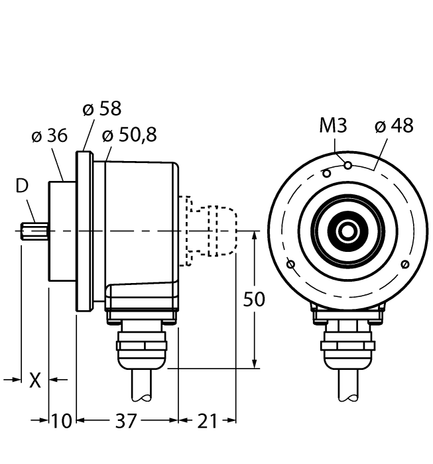

Turck RI-10S6S9-2K1024-CA1M

SKU: CS5974594MPN: RI-10S6S9-2K1024-CA1MAlternate Part #: 200005575
Turck RI-10S6S9-2K1024-CA1M
$543.75
Unit
Available on backorder
remove
add

Product Details

Incremental Shaft Encoder

Industrial Line

  • Servo flange, Ø 50.8mm
  • Solid shaft, Ø 8mm x 10mm
  • Optical measuring principle
  • Shaft material, stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 5…30 VDC
  • Cable connection, 8-pole
  • Push-pull, with inverted signals
  • Pulse frequency max. 300 kHz
  • 1024 pulses per revolution

Attributes

Ambient Temperature -40…+85 °C
Ecl Ss Code V5 1 4 27270502 -/- Encoder, incremental
Electrical Connection Cable
Encoder Line Industrial-Line
Flange Diameter Ø  50.8 mm
Flange Type Synchro flange
Housing Material Die-cast zinc
Operating Voltage 5…30 VDC
Output Function Push-Pull 7272, with inverted signals
Output Type Incremental
Protection Class IP67
Protection Class Shaft IP67
Resolution Incremental 1024  ppr
Shaft Diameter D Mm 6 mm
Shaft Type Solid shaft
Technology Optical

Specifications

SKUCS5974594
MPNRI-10S6S9-2K1024-CA1M
Alternate Part #200005575
