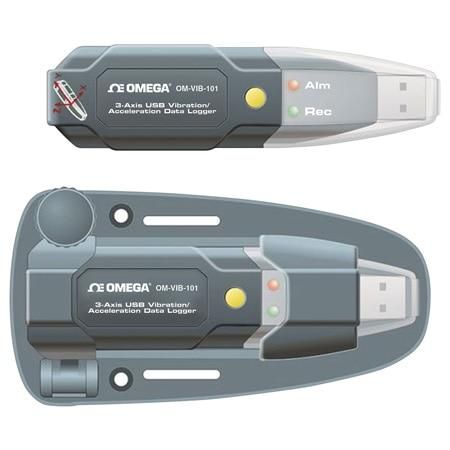

Omega OM-VIB-101

Name: Omega OM-VIB-101
Brand: Omega
SKU: CS5798373
Price: 285.24 USD
Availability: OutOfStock

SKU: CS5798373MPN: OM-VIB-101

3-Axis USB Vibration/Acceleration Data Logger

$285.24

Unit

Available on backorder

Quantity

remove

add

Documents

Mountable Data Logger Uses Three Accelerometers to Precisely Measure Acceleration of Operating Equipment on X, Y and Z Axes
Stores up to 327,600 Data Points in Flash Memory
One Button Starts/Stops Data Logging Without a PC
Plug-and-Play USB 2.0 Interface–No Need for Cables, Cradles or Docks

Width	32.5 mm
Height	54 mm
Length	113 mm
Memory	327600 Data Points
Weight	73.5 g
Software	Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)
Series ID	OM-VIB-101-Logger
Memory Note	327,600 data points in 16 MB flash memory
Sampling Rate	20 Hz (20 updates/second)
Data Interface	USB
Humidity Range	5 to 95% RH
LED Indicators	Red and Green LEDs Indicate Device Status (Recording, Not Recording, Low Battery, Memory Full)
Measurement Type	Vibration, Acceleration
Country of Origin	China
Supply Power Type	Battery
Acceleration Range	± 16 g
Frequency Response	0 to 60 Hz
Sampling Rate Note	50 ms to 24 hours
Calibration Accuracy	Accelerometer : ±0.5 g
Battery Size and Type	3.6V Li-ion
Number of Measurements	3
Measurement Pressure, Max	0 psi
Operating Temperature, Max	45 °C
Operating Temperature, Min	0 °C
