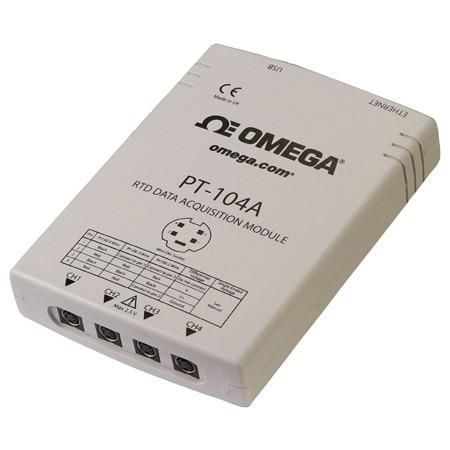

Omega PT-104A

Name: Omega PT-104A
Brand: Omega
SKU: CS5797953
Price: 1489.67 USD
Availability: OutOfStock

SKU: CS5797953MPN: PT-104A

4-Channel RTD Input DAQ Module with USB or Ethernet Interface

$1,489.67

Unit

Available on backorder

Quantity

remove

add

Documents

Product Details

Measures Temperature (RTDs), Resistance and Voltage
High Accuracy (0.01°C) and Resolution (0.001°C)
Powered by USB Port or Power-Over-Ethernet (PoE)
For Use with 2, 3 and 4-Wire Pt100 and Pt1000 RTD Sensors

Attributes

Width	135 mm
Height	36 mm
Length	184 mm
Weight	500 g
Accuracy	± 0.002%
Software	Logging Software
Linearity	RTD: 20 ppm, Resistance: 20 ppm, Voltage: 20 ppm
Series ID	PT-104A-DAQ-Module
Input Type	RTD, Voltage, Resistance
Resolution	RTD: 0.001°C, Resistance: 1 µΩ, Voltage: 0.156 µV
Data Interface	Ethernet, USB 2.0
Supply Current	Up to 200 mA
Supply Voltage	5 Vdc
Conversion Rate	720 msec
Impedance Input	>1 MΩ
Input Type Note	RTD: Pt100, Pt1000, 2, 3 and 4-Wire
Country of Origin	United Kingdom
Relative Humidity	20 to 90% RH
Supply Power Note	Powered by USB or Ethernet: USB 1.1: 5V ±10% @ <100 mA, USB 2.0: 5V ±10% @ <200 mA, Ethernet: 48V ±20% @ <40 mA (<2W)
Data Interface Note	Ethernet Cable Length, Max: 100 m;Ethernet Port: Conforms to IEEE 802.3 10Base-T.; Compatible with 10/100/1000Base-T networks.; Conforms to IEEE 802.3af Power-over-Ethernet (PoE);;Supported Operating System: Microsoft Windows®XP SP2 / VISTA/7, Software Development Kit containing drivers and example code for C, C++, Excel and LabView.
Input Noise Voltage	RMS: RTD: 0.01°C, Resistance: 10 ppm, Voltage:10 ppm
Electrical Connection	DIN 43650 C (solenoid valve)
Temperature Coefficient	RTD: 5 ppm/°C, Resistance: 5 ppm/°C, Voltage:100 ppm/°C
Number of Channels, Input	Temperature: 4
Voltage Measurement Range	0 to 115 mV, 0 to 2.5V
Operating Temperature, Max	70 °C
Operating Temperature, Min	0 °C
Resistance Measurement Range	0 to 375 Ω, 0 to 10 kΩ
