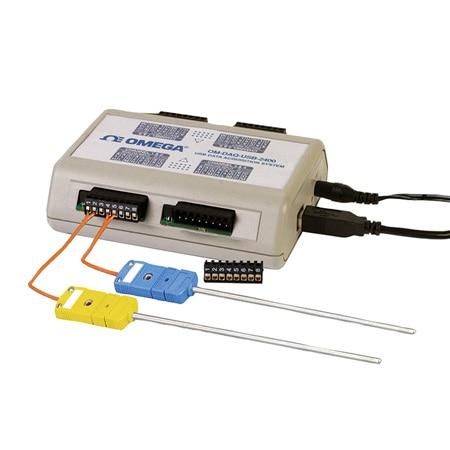

Omega OM-DAQ-USB-2401

Name: Omega OM-DAQ-USB-2401
Brand: Omega
SKU: CS5803620
Price: 1319.52 USD
Availability: OutOfStock

SKU: CS5803620MPN: OM-DAQ-USB-2401UPC/EAN: 008471300100

Portable USB Thermocouple/Voltage Input Data Acquisition Module

$1,319.52

Unit

Available on backorder

Quantity

remove

add

Documents

Product Details

8 Differential or 16 Single- Ended Analog Inputs
24 Bit Resolution with Up to 1000 Samples/Sec
User Programmable for Type J, K, T, E, R, S, B, N Thermocouple or Voltage Input
Free Windows Software Suite Available for Download from OMEGA - DAQ Central Menu Driven Windows Software and Also .NET API/Driver for Visual Basic, C#, and Visual C++ for Windows XP, Vista and Windows 7

Attributes

Width	107 mm
Height	39 mm
Length	128 mm
Weight	0.23 kg
Accuracy	± 0.02 %
Mounting	DIN-Rail or Wall Mount
Isolation	500V from PC
Series ID	OMB-DAQ-USB-2401
Input Type	Thermocouple, Voltage
Data Interface	Ethernet, USB 1.1, USB 2.0
Digital Output	12 Vdc
LED Indicators	Power and Activity LEDs Blink
Supply Voltage	5 Vdc
Analog I/O Note	Analog Input Note: TC Input;Thermocouple Accuracy: In very slow mode, 24 bit resolution: J = ±1.1°C, K = ±1.2°C, T = ±1.1°C, E = ±1.0°C, R = ±2.5°C, S = ±2.6°C, B = ±3.3°C, N = ±1.5°C ;Cold Junction Compensation Accuracy: ±1.0°C;Analog Input Accuracy;Differential Input: In very slow mode, 0.015% of reading +0.004% of range +10uV (exclusive of noise);Single-End Input: In very slow mode, 0.05% of reading +0.01% of range +50uV (exclusive of noise);Open Thermocouple Detect: Automatically enable when a channel is configured for a thermocouple sensor
Country of Origin	United States
Relative Humidity	0 to 95% RH non-condensing
Supply Power Note	Powered direct from USB port, max 500 mA, or from external 7.5 to 12 Vdc, External Excitation Output Voltage: 12 Vdc regulated, max total current output 67 mA
Data Interface Note	Configuration Method: DAQ Central Software;Supported Operating System: Microsoft Windows®XP SP2 / VISTA/7
Input Configuration	Connected Software
Configuration Parameters	User-Configurable Input/Output
Storage Temperature, Max	85 °C
Storage Temperature, Min	-40 °C
Number of Channels, Input	Analog: 16 SE/8 DIFF
Voltage Measurement Range	±10V, ±500 mV, ±5V,±250 mV, ±2.5V, ±125 mV, ±2V, ±75 mV, ±1V, ±30 mV
Operating Temperature, Max	50 °C
Operating Temperature, Min	0 °C
