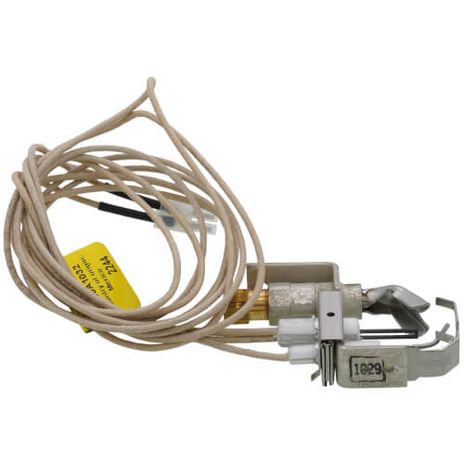

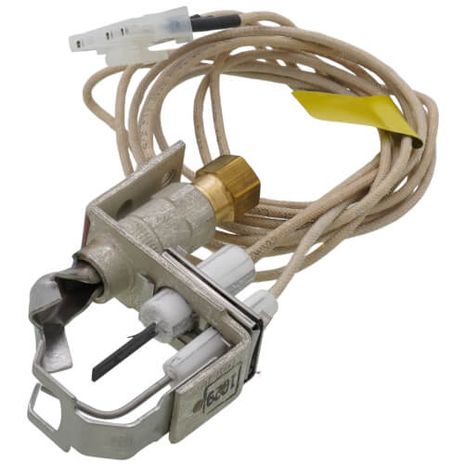

Resideo Q3450B1112

SmartValve Pilot Burner for LP Gas, BCR-10 Orifice, Left Tip, Bracket Style B

These SmartValve® System pilot burners provide pilot flame ignition and sensing for SmartValve Systems. They consist of a bracket, pilot target, ground electrode, replaceable igniter-flame rod, orifice assembly, compression fitting and spring clip.

Features:

• Used with SmartValve™ Systems.
• Replaceable Igniter-Flame Rod Assembly (Q3400A).
• Integral keyed plug provides quick, convenient connection of igniter and sensor to SmartValve™.
• Q3450 has front or 20 degree right, left flame patterns.
• Natural and LP gas orifices available.
• Variety of target styles available.
• Variety of mounting brackets available.

Specifications:

• Used With: SV9500, SV9600
• Mounting: Bracket Style B
• Temperature Ratings (C): Leadwire--450 C
• Type of Gas: LP
• Approvals: AGA Design Certificate: U70-24A
• Aeration: Primary
• Compression Fitting Size: ¼”
• Compression Fitting Length: 1”
• Orifice: BCR-10 (0.010”)
• Tip Style: Left
• Pilot BTUH: 1000
• Ignition Wire Length: 30”
