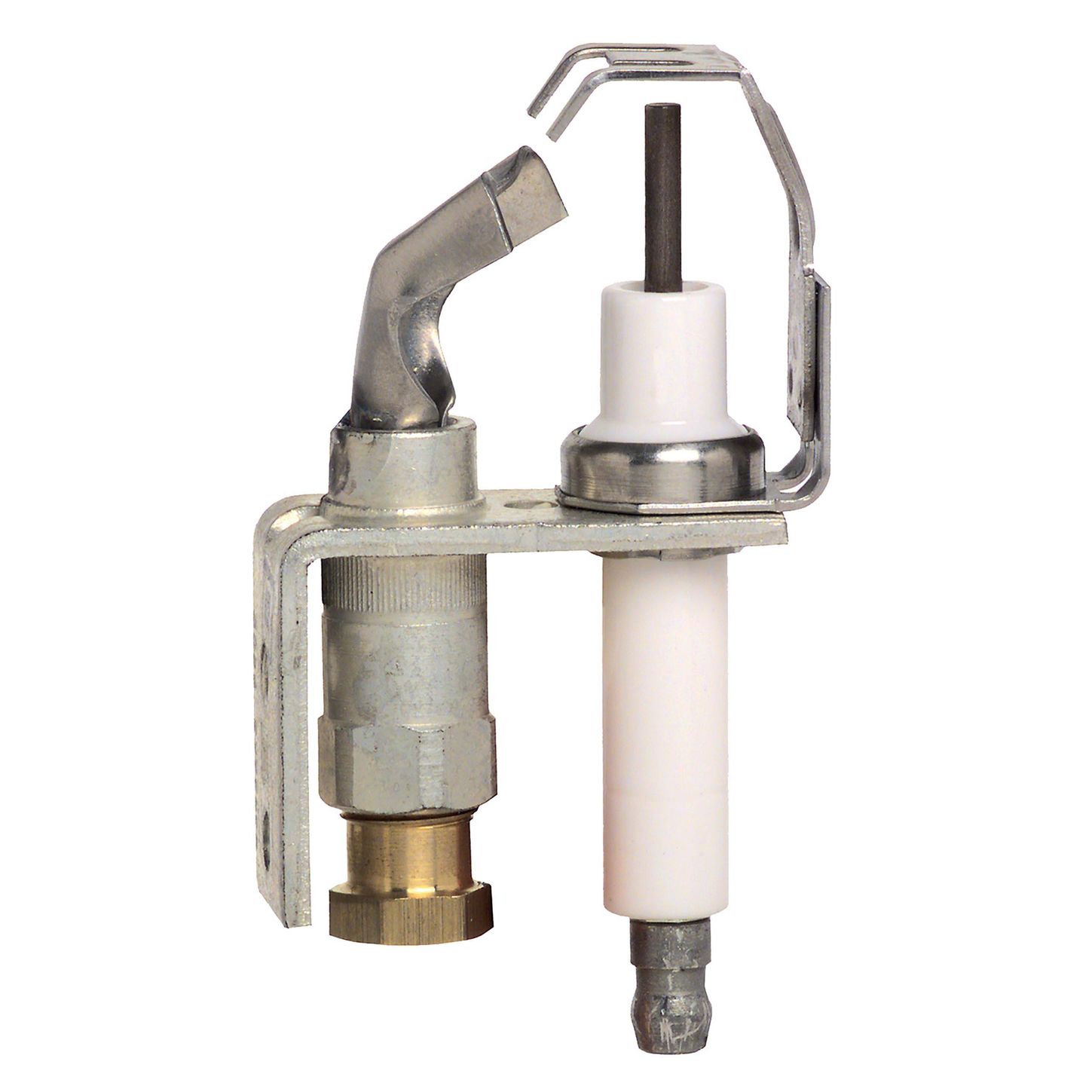

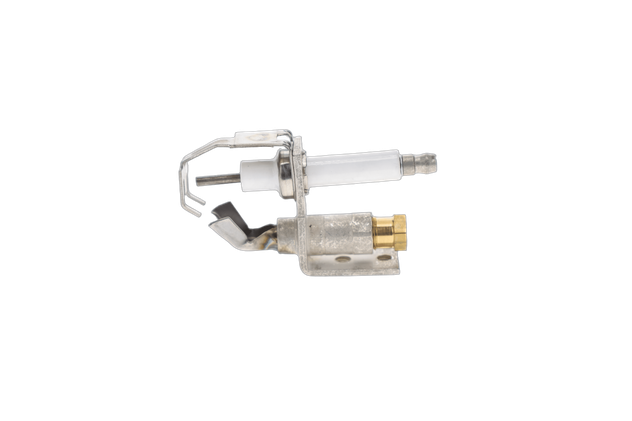

Resideo Q345A1313

Combination intermittent pilot burner and ignitor with left tip

Nonprimary-aerated combination pilot burner and ignitor. Used with the S86, S860, S8610, or S8670 in intermittent pilot systems.

Features

• Includes pilot burner with bracket, ceramic-insulated Kanthal flame rod/spark igniter and ground strap.
• Single tip style.

Specifications

• Type of Gas: Natural
• Mounting Bracket: B
• Compression Fitting Size: ¼”
• Compression Fitting Length: .78”
• Orifice: BCR-18 (0.018 in.)
• Direction of Front Tip: (L) left
• Tip Style: Single
• Aeration: Non-primary
• Leadwire Temp Ratings: Max. at electrode tip: 968 C
• Includes: Special mounting bracket with screws to convert “B” bracket to “A” bracket
