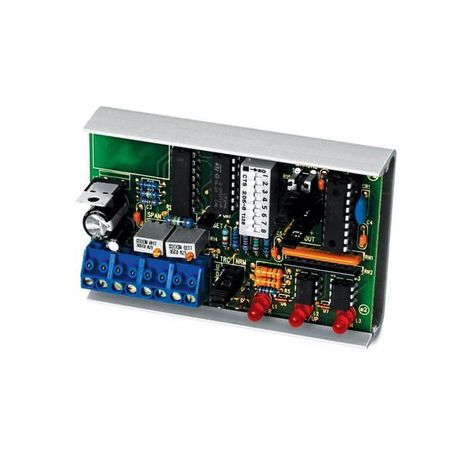

ACI AUD VERSION #2

Name: ACI AUD VERSION #2
Brand: ACI
SKU: CS6285284
Price: 161.37 USD
Availability: OutOfStock

SKU: CS6285284MPN: AUD VERSION #2Alternate Part #: 102094

Floating Point Input (45 sec), Analog Output, Version 2, (60, 120, 240 sec Selectable)

$161.37

Unit

Available on backorder

Quantity

remove

add

Product Details

Floating Point Input (45 sec), Analog Output, Version 2, (60, 120, 240 sec Selectable)

Product Configuration

Input Rate Of Change	45s, 60s, 2 min, 4 min

Product Family Specifications

Wire Size	16 (1.31 mm2) to 26 AWG (0.129 mm2)
Connections	90° Pluggable Screw Terminal Blocks
Product Weight	0.24 lbs. (0.1077 Kg)
Supply Current	208 mA maximum
Supply Voltage	24 VDC (24 VDC to 35 VDC) or 24 VAC (21.6 VAC to 28 VAC), 50/60 Hz.
Agency Approvals	RoHS2, WEEE
Product Dimensions	(L) 3.75” (W) 2.20” (H) 1.15” (95.25 x 55.88 x 29.21 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Input Signal Source	Relay contact closure, transistor, or triac (24 VAC, 50/60 Hz)
Operating Humidity Range	10 to 95% non-condensing
Output Signal Resolution	256 steps (all ranges)
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Input Signal Trigger Level	Normal Mode: 5 to 26.4 VDC, 24 to 26.4 VAC Triac Mode: 24 to 26.4 VAC
Output Current Signal Load	0 to 750Ω maximum (If the load is lowered to 700Ω, the DC supply can be 24 VDC –10% and maintain stated accuracy
Output Voltage Signal Load	3300Ω minimum at 20 VDC ± 10% , 400 ohms minimum at 10 VDC ± 10% (If the voltage output is limited to 18 VDC on the high end of the output span, the DC supply limit can be 24 VDC –10% and maintain stated accuracy
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Regulated Power Output (User)	24 VDC (+/- 10%), 48 mA maximum
Snaptrack Flammability Rating	UL94 V-0
Input Full Range Rates of Change	See Ordering Grid
Output Current Fixed Signal Ranges	0 to 16 mA, 4 to 20 mA
Output Voltage Fixed Signal Ranges	0 to 1 VDC, 0 to 4 VDC, 0 to 10 VDC, 0 to 13 VDC, 1 to 2 VDC, 1 to 5 VDC, 1 to 11 VDC, 1 to 14 VDC
Output Signal Accuracy (24 VAC, 50 Hz)	Absolute +/- 3% of span for adjustable ranges, 5% for preset
Output Signal Accuracy (24 VAC, 60 Hz)	Absolute +/- 2% of span for adjustable ranges, 5% for preset
Output Current Adjustable Signal Ranges	0 to 20 mA (with adjustable offset and span)
Output Voltage Adjustable Signal Ranges	0 to 20 VDC (with adjustable offset and span)
