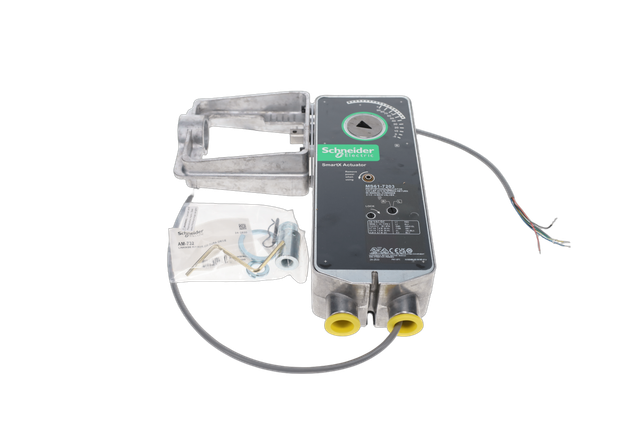

Schneider Electric MA61-7203

SKU: CS526482MPN: MA61-7203UPC/EAN: 711426485950

Act (MA61-7203): Elec, 2Pos, SR, 24 VAC/VDC, App, 220 lbf, Linear, N4

Schneider Electric MA51-7203, MA61-7200, MA61-7203, MF51-7203, MF61-7203, MS61-7203
$558.36
Unit
5+ Units Available at Factory - Ships Same/Next Business Day
remove
add

Product Details

Actuator: (MA61-7203):

  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Power Input Voltage: 22 to 30 VDC, 24 VAC, 24 VDC
  • Leads and Connections: 3 ft Appliance
  • Force: 220 lbf
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 4
  • Product Line: Schneider Electric
  • Product Range: SmartX Actuator
  • Product Series: MAx1-720x
  • Actuator Use: Globe Valves

Attributes

Us Rated Supply Voltage 22…30 V DC 24 V AC/DC
Actuator linear
Ambient Air Temperature For Operation -17.7-60 °C
Ambient Air Temperature For Storage -40-71 °C
Control Type automatic reset
Current Consumption 290 mA
Electrical Insulation Class class II
Force Lbf 220 lbf
Force N 979 N
Hold In Power Consumption In W 2.8-2.8 W
Ip Degree Of Protection IP56
Material die cast aluminium: housing
Motor Type brushless DC motor
Power Consumption In Va 9.8 VA AC
Power Consumption In W 7.5 W
Product Destination globe valve
Product Or Component Type actuator
Relative Humidity 15-95 % non-condensing
Switch Function No
Targeted Region North America.
Taxoclass Id PTC_D54011_XXX

Specifications

SKUCS526482
MPNMA61-7203
UPC/EAN711426485950
