Siemens GND226.1U

Name: Siemens GND226.1U
Brand: Siemens Building Technologies
SKU: CS555040
Availability: OutOfStock

SKU: CS555040MPN: GND226.1UUPC/EAN: 4034106341046

Electric Actuator 0 to 140F 2 SPDT

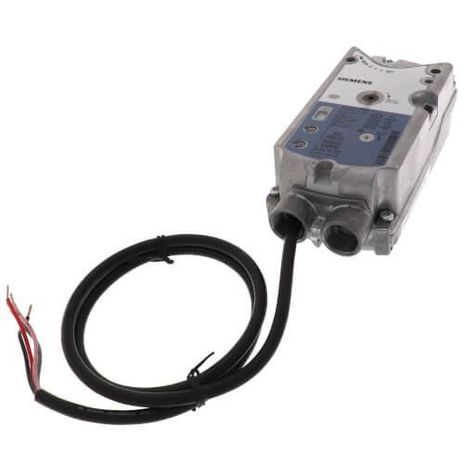

Siemens Building Technologies GND126.1U, GND226.1U

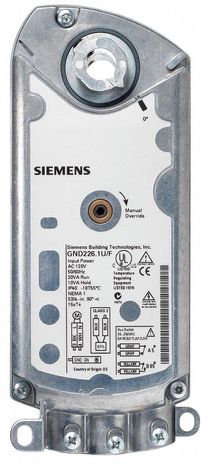

Siemens Building Technologies GND121.1U, GND126.1U, GND221.1U, GND226.1U

Discontinued - Contact Us For Pricing & Availability

Product Details

Two-Position Actuator Spring Return Shaft Type Set Screw Shaft Coupling Torque (In.-Lbs.) 53 Stroke Deg 90 Height (In.) 8 Width (In.) 2-½ Depth (In.) 3-¼ Switch Type SPDT Timing (Sec.) 15 Voltage 120 VAC Includes 2 Auxiliary Switches

Attributes

Max Temp	140 °F
NSR/SR Actuator	Spring Return
Actuator Type	Electronic
Fail-safe Position	Fail Safe
Control Signal Type	2-position
Nominal Voltage	120 VAC
NEMA Rating	NEMA 1, die-cast aluminum alloy enclosure
Aux Switches	2
Damper Actuator Torque	53 lb-in
Plenum Rating	Standard
Damper Actuation Application	Fire/Smoke Control Damper
Cable Length	3 ft
Damper Actuation Style	Rotary
Stroke Degrees	90 °
Power Consumption	Running: 20 VA, Holding: 9 VA
VA Rating	9
Color	Aluminum metallic
