Eaton 1250E-8504

Name: Eaton 1250E-8504
Brand: Eaton
SKU: CS550665
Price: 453.63 USD
Availability: OutOfStock

SKU: CS550665MPN: 1250E-8504Alternate Part #s: 1250E-8504EAT-1250E-8504UPC/EAN: 782116112722

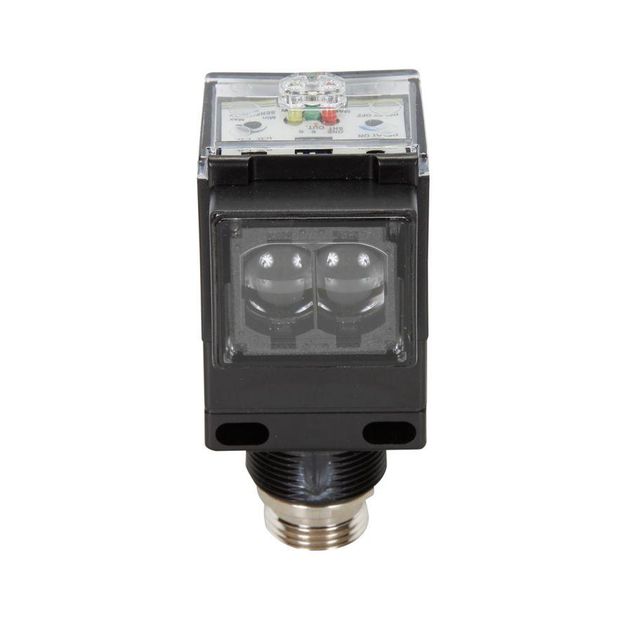

Eaton Enhanced 50 photoelectric sensor

Eaton 1150E-6507, 1150E-6513-9M, 1150E-6534, 1150E-6543, 1150ES4060, 1151E-6534, 1250B-6501, 1250B-6502, 1250B-6507, 1250B-6511, 1250B-6512, 1250BS9352, 1250E-6533, 1250E-6534, 1250E-6537

Product Details

Eaton Enhanced 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 200 Ft., Fiberglass reinforced plastic encl., 3A max AC, SPDT Form C Relay, 3A at 240 Vac, 5 Pin Mini Connector, 12–240 Vdc 24–240 Vac input

Attributes

Connection	5-pin mini connector
Contact Configuration	SPDT form C relay
Contact Rating	3A at 240 Vac
Enclosure Material	Fiberglass reinforced plastic
Environmental Rating	IP67, IP69K
Input Voltage	12-240 Vdc, 24-240 Vac
Led Indicator	Output status: green Marginal gain: red Power on: yellow
Maximum Ac Current	3 A
Operating Mode	Thru-beam
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Through beam
Switch Type	Photoelectric
Time Delay	Yes
