Eaton 1251E-8504

Name: Eaton 1251E-8504
Brand: Eaton
SKU: CS5018647
Price: 453.63 USD
Availability: OutOfStock

SKU: CS5018647MPN: 1251E-8504UPC/EAN: 782116113026

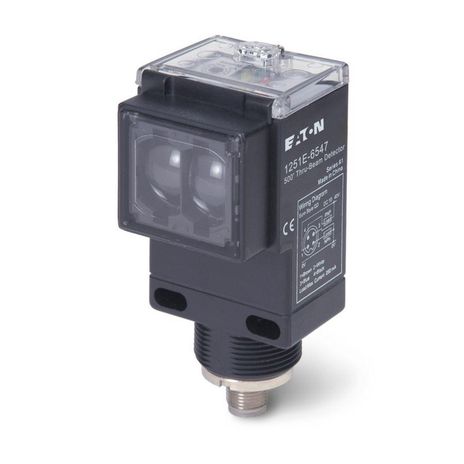

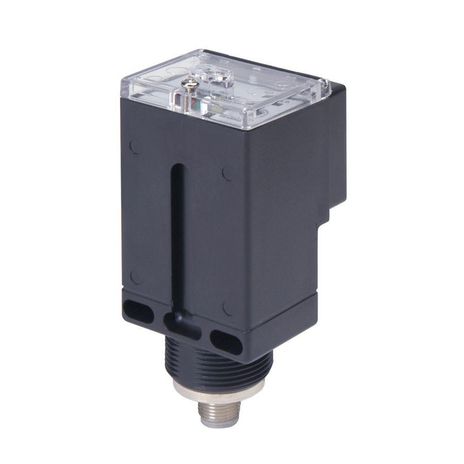

Eaton Enhanced 50 photoelectric sensor

Product Details

Eaton Enhanced 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 500 Ft., Fiberglass reinforced plastic encl., 3A max AC, SPDT Form C Relay, 3A at 240 Vac, 5 Pin Mini Connector, 12–240 Vdc 24–240 Vac input

Attributes

Connection	5-pin mini connector
Contact Configuration	SPDT form C relay
Contact Rating	3A at 240 Vac
Enclosure Material	Fiberglass reinforced plastic
Environmental Rating	IP67, IP69K
Input Voltage	12-240 Vdc, 24-240 Vac
Led Indicator	Output status: green Marginal gain: red Power on: yellow
Maximum Ac Current	3 A
Operating Mode	Thru-beam
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Through beam
Switch Type	Photoelectric
Time Delay	Yes
