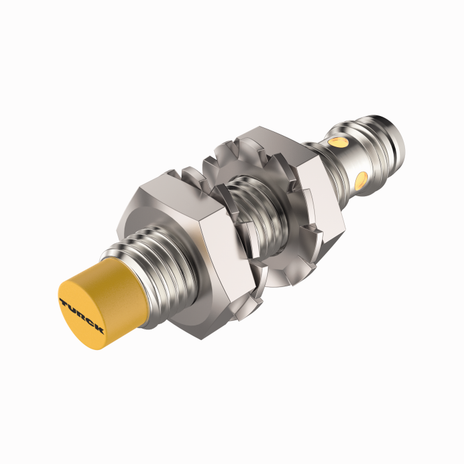

Turck NI5-M08-AP6X-V1131
SKU: CS3683235MPN: NI5-M08-AP6X-V1131Alternate Part #: 4602921UPC/EAN: 4047101396119
4602921 - FERRITE, BARREL, DC, CON. M8
$138.50
UnitAvailable on backorder
Product Details
Inductive Sensor
With Increased Switching Distance

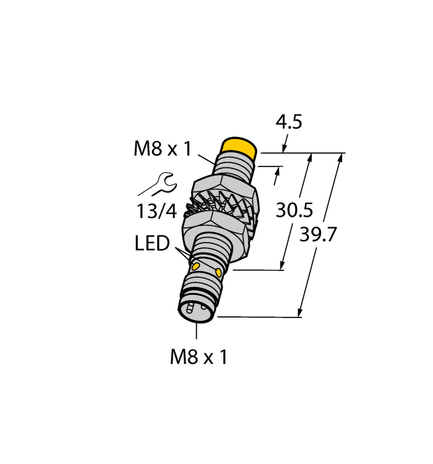

- Threaded barrel, M8 x 1
- Nickel-plated brass
- Large sensing range
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M8 x 1 male connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | M8 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M8 × 1 |
| Housing Material | Metal, CuZn, Nickel Plated |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 5 mm |
| Special Feature | Sn + |
| Switching Frequency | 2.80 kHz |
Specifications
| SKU | CS3683235 |
|---|---|
| MPN | NI5-M08-AP6X-V1131 |
| Alternate Part # | 4602921 |
| UPC/EAN | 4047101396119 |
