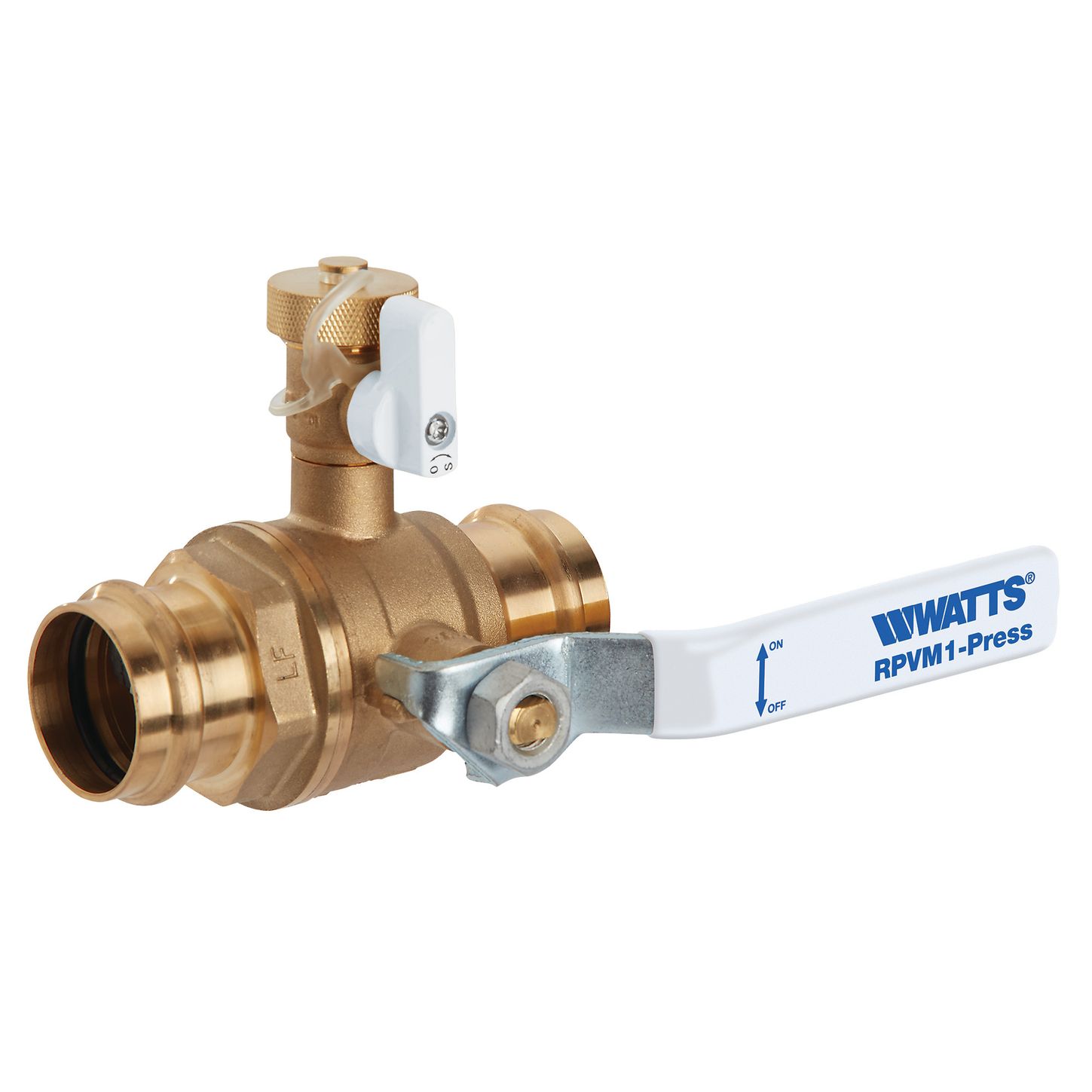

Watts 88009102

1 RPVM1-Press

This 1” Press residential purge and balancing valve is used in heating applications to facilitate removal of air from heating zones on initial fill and to control water flow through a circulation loop. It also serves as a shutoff valve and a drain valve for each zone or loop. This valve consists of a one-piece brass body with brass drain, plated brass ball, virgin PTFE seats, hose thread connection for purging, iron handle, and press end connections. It provides high volume purging, accurate balancing, a positive drip-tight shutoff and is ideal for use in hydronic heating loops.

Features:

• ½ IN purge port
• Press connections
• Tethered purge port cap
• Full port ball valve

Specifications:

• Body Material: Brass
• Buy American Act Compliant: No
• Inlet Connection Size: 1”
• Inlet Connection Size-Metric: Does Not Apply To Product
• Inlet Connection Type: Press
• Lead Free: Yes
• Maximum Temperature-Fahrenheit: 250
• Outlet Connection Size: 1”
• Outlet Connection Type: Press
• Vacuum Breaker: No
