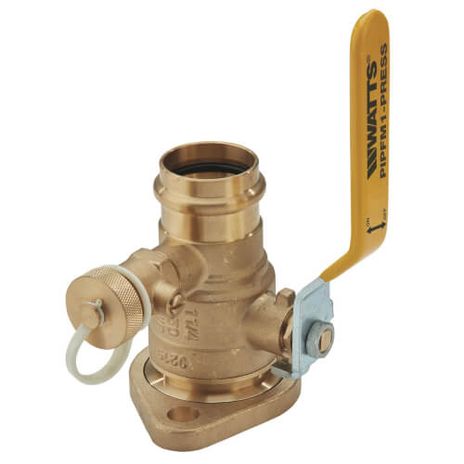

Watts 0069015

¾ PIPFM1-PRESS

The ¾” PIPFM1-Press is a full port purge isolation pump valve which features a swivel flange and press end connections. This flanges allows for the installer to position the handle of the valve in an optimal orientation for use.

Features:

• Swivel Flange
• Press Connection
• Lever Handle
• Leaded Valve

Specifications:

• Actuation: No
• Assembled Dry: Yes
• Balance Stop Plate: No
• Ball Material: Brass
• Body Finish: Brass
• Body Material: Brass
• Control Type: Lever Handle
• EAN: 098268186147
• Inlet Connection Size: ¾”
• Inlet Connection Size-Metric: 20 mm
• Inlet Connection Type: Flanged Joint
• Lead Free: Not In Scope
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature-Fahrenheit: -40
• Outlet Connection Size: ¾”
• Outlet Connection Type: Press
• Port Type: Full
• Seat Material: PTFE
• Series: PIPFM1
• Stem Packing Material: PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: PTFE
• Valve Style: 2-piece
• WOG Rating: 600 PSI
