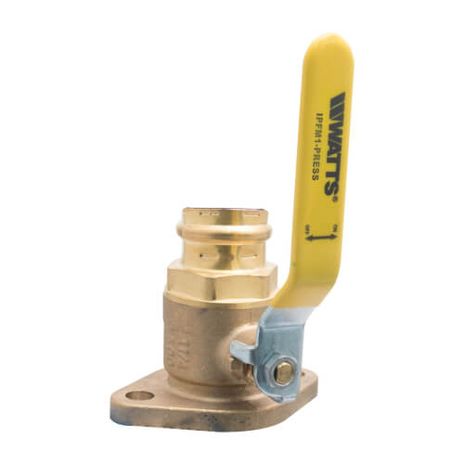

Watts 0068089

1 ¼ IPFM1-PRESS

The 1-¼” isolation pump flange is designed to isolate circulator pumps to facilitate circulator pump replacement or repairs. It features a brass body and flange with bottom loaded blowout proof stem, Buna-N stem O-Ring seal, virgin PTFE seat, integral press fitting end connection, and optional T-handle included.

Features:

• Buna-N stem and O-ring seal
• Press end connection
• Virgin PTFE seats
• Brass body and flange

Specifications:

• Actuation: No
• Assembled Dry: Yes
• Balance Stop Plate: No
• Ball Material: Chrome Plated Brass
• Body Finish: Brass
• Body Material: Brass
• Buy American Act Compliant: NO
• Control Type: Lever Handle
• EAN: 098268141160
• Inlet Connection Size: 1-¼”
• Inlet Connection Type: Press
• Maximum Temperature-Fahrenheit: 406
• Minimum Temperature-Fahrenheit: 100
• Outlet Connection Size: 1-¼”
• Outlet Connection Type: Press
• Seat Material: Virgin PTFE
• Series: IPF
• Stem Packing Material: Virgin PTFE
• Stem Shaft: Material Brass
• Stem Type: Bottom Loaded Blowout Proof
• Valve Style: 2-piece
• WOG Rating: 600 PSI
