Schneider Electric VA-8303-596-5-13

SKU: CS5489519MPN: VA-8303-596-5-13UPC/EAN: 711426014754

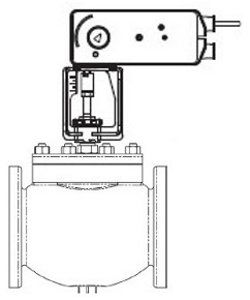

VB: 3 in, 3W Mix/Div, Globe, FLG, UC, BR, See doc for cv, 35 PSI, Act (MA61-7203): Elec, 2Pos, SR, 24 VAC/VDC, App, 220 lbf, Linear, N4

Schneider Electric VA-8303-596-5-12, VA-8303-596-5-13, VA-8303-596-5-14, VA-8303-596-5-15, VF-8303-596-5-13, VF-8303-596-5-14, VS-8303-596-5-12, VS-8303-596-5-13, VS-8303-596-5-14, VS-8303-596-5-15
$2,566.43
Unit
3 Units Available at Factory - Ships Same/Next Business Day
remove
add

Product Details

Valve Assembly:

  • Body Size: 3 in
  • Configuration: 3-Way Mixing/Diverting
  • Type: Globe
  • Connection: Flanged
  • Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
  • Material Trim: Brass
  • Flow Coefficient: See documentation for cv cv
  • Close-Off Pressure: 35 PSI
  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
  • Leads and Connections: 3 ft Appliance
  • Force: 220 lbf
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 4

Assembly Components:

  • Valve Body: VB-8303-0-5-13
  • Valve Range: Balanced Plug Technology
  • Valve Linkage: None, tool-less connection
  • Actuator: MA61-7203
  • Actuator Range: SmartX Actuator

Product Alert: Flow Coefficient varies depending on configuration; see documentation for further details. Not for use with steam.

Attributes

Us Rated Supply Voltage 22…30 V DC 24 V AC/DC
Actuator linear
Ambient Air Temperature For Operation -17.7-60 °C
Ambient Air Temperature For Storage -40-71 °C
Body Material cast iron
Control Type automatic reset
Current Consumption 290 mA
Electrical Insulation Class class II
Force Lbf 220 lbf
Force N 979 N
Hold In Power Consumption In W 2.8-2.8 W
Ip Degree Of Protection IP56
Material die cast aluminium: housing
Motor Type brushless DC motor
Operating Fluid Temperature -7-138 °C
Power Consumption In Va 9.8 VA AC
Power Consumption In W 7.5 W
Product Destination globe valve
Product Or Component Type valve-actuator assembly
Relative Humidity 15-95 % non-condensing
Seat Leakage Port A: Class III (0.1 %)
Seat Material Port A: brass
Switch Function No
Targeted Region North America.
Taxoclass Id PTC_D54038_XXX

Specifications

SKUCS5489519
MPNVA-8303-596-5-13
UPC/EAN711426014754
