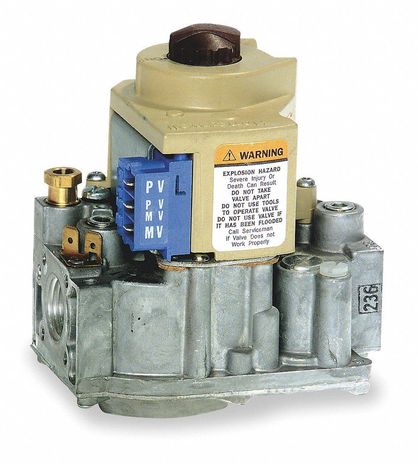

Resideo VR8245M2530

Universal 24 Vac, Standard Opening, Intermittent / Direct Ignition Gas Valve ½ x ½ in. Set 3.5 in WC

Used in gas-fired appliances with capacities up to 150 cu ft/hour at 1 inch wc pressure drop (4.2 cu m/hour at 0.25 kPa) for natural gas. The VR8245M will operate with a direct spark (DSI), hot surface (HSI) or intermittent pilot ignition. The control includes a manual valve, two automatic operators, a pressure regulator, pilot adjustment, pilot plug and ignition adapter.

Includes: Natural to LP Conversion Kit, one ½” x ⅜” reducer bushing

Specifications:

• Description: 24 Vac Dual Intermittent Pilot Gas Valve with ½ in. x ½ in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
• Type: Single Stage
• Ignition Type: Intermittent Pilot
• Type of Gas: Natural or LP
• Inlet/Outlet Size (in.): ½ in. x ½ in.
• Body Pattern: Straight-through
• Opening Characteristics: Standard
• Capacity @ 1 in. p.d.: 150,000 BTU/hr
• Pressure Ratings (psi): ½ psi
• Pressure Ratings (kPa): 3.5 kPa
• Pressure Regulator Setting (psi): 3.5 in. wc
• Pressure Regulator Setting (kPa): 0.9 kPa
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz; 50 Hz
• Temperature Range (F): -40 F to +175 F
• Temperature Range (C): -40 C to +79 C
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
