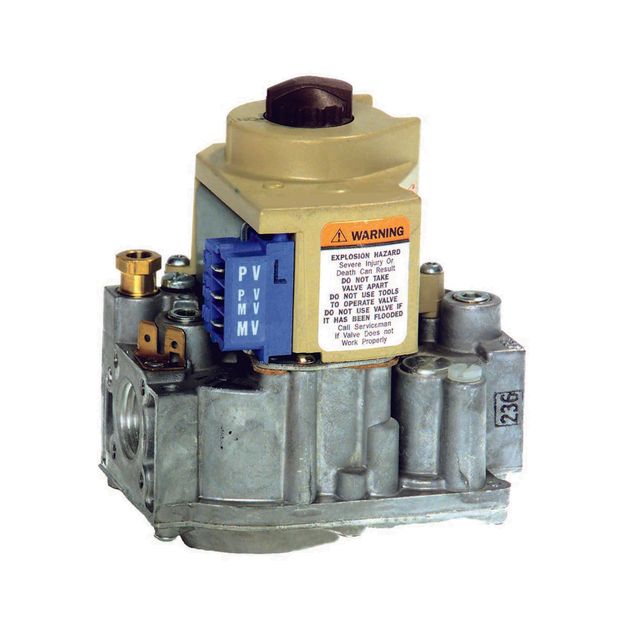

Resideo VR8200H1251

Single Stage, 24 Vac, Slow Opening, Standing Pilot Gas Valve. ½ x ½”“. Set 3.5”” WC

24 Vac Dual Standing Pilot Gas Valve with ½ in. x ½ in. inlet\outlet, slow opening and 3.5 in. wc pressure regulator setting

Includes: Natural to LP Conversion Kit, One ½” x ⅜” reducer bushing, One ¾” straight flange

Features

• Combination gas controls for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 20 to 200 cfh.
• Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.

• Compact size.

• Provide two automatic valves.

• Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.

• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.

• Meet codes requiring dual safety shutoff.

• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.

• LITE-RITE (OFF-PILOT-ON) lighting sequence.

• All adjustments, wiring connections and pilot outlet are accessible from top of control.

• Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.

• Compatible with ECO connector.

Product Specifications

Type: Single Stage

Ignition Type: Standing Pilot

Type of Gas: Natural

Inlet/Outlet Size (in.): ½ in. x ½ in.

Body Pattern: Straight-through

Opening Characteristics (standard, step): Slow Opening

Capacity @ 1 in. p.d.: 130,000 BTU/hr; 20,000 BTU/hr minimum

Pressure Ratings: ½ psi, or 3.5 kPa

Pressure Regulator Setting: 3.5 in. wc (psi), or 0.87 kPa

Pilot Gas Outlet: Compression fitting for ¼ in. OD tubing

Pressure Tapping: ⅛ in. NPT with plug

Electrical Connections: Combination screw and ¼ in. male quick connects

Electrical Ratings: 24 Vac

Frequency: 60 Hz

Anticipator Setting: 0.5 A

Temperature Range: 0° to 175°F, or -18° to +79°C

Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically

Dimensions (in.): 5 ⅜ in. high x 4 1/16 in. wide x 2 11/16 in. deep

Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep

Approvals, American Gas Association IAS: AGA Design Certified: File no. L2025006; CGA Design Certified: File no. L2025006; UL Component Recognized: File no. MH5323

Approvals, Canadian Gas Association: UL Component Recognized: MH5323
