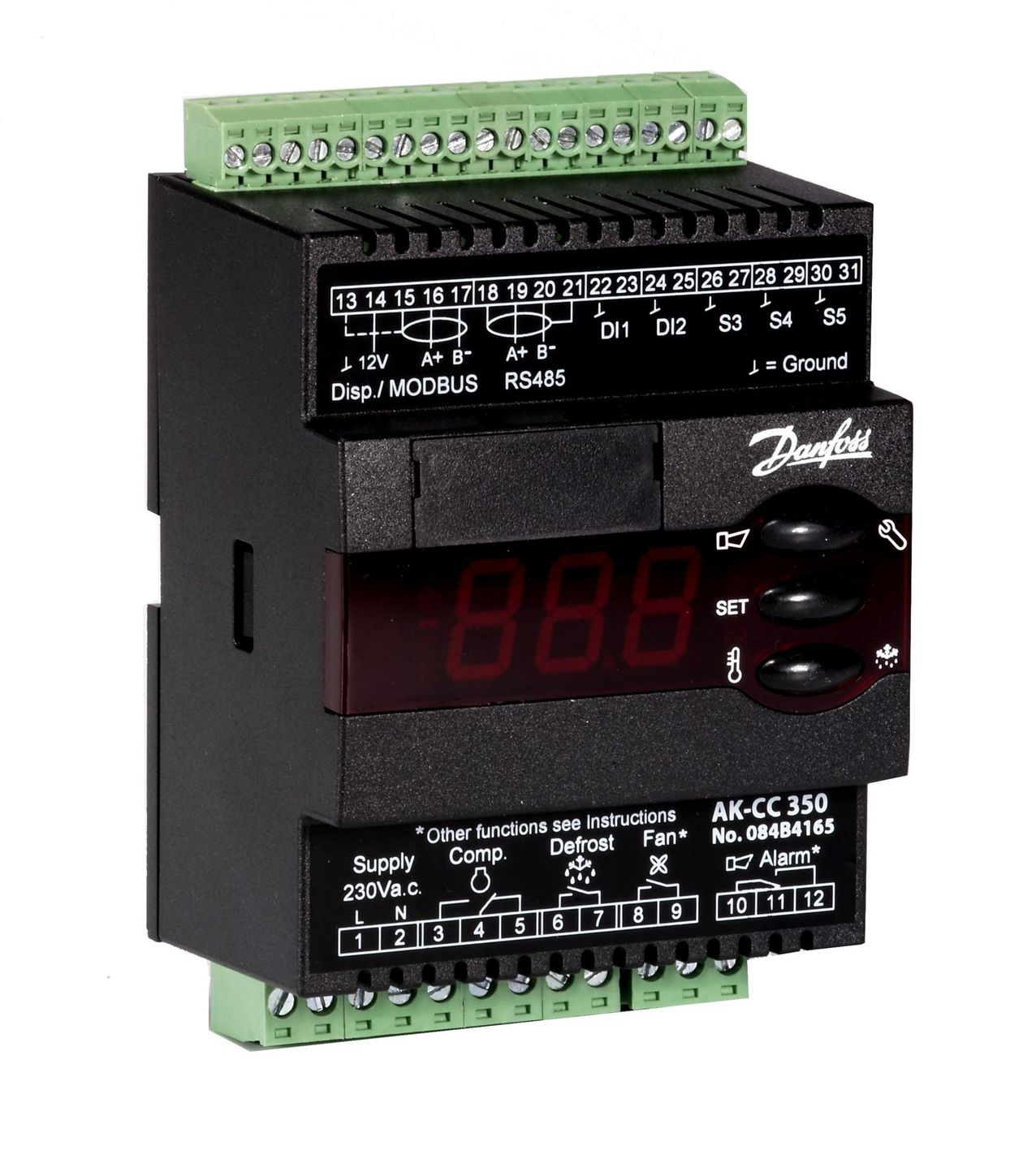

Danfoss 084B4165

Name: Danfoss 084B4165
Brand: Danfoss
SKU: CS5083704
Availability: OutOfStock

SKU: CS5083704MPN: 084B4165

Refrig appliance control (TXV), AK-CC 350

Product Details

Application area: Temperature control, Function: Temp, Multi appli. 4 relays, Communication type: Optional MODBUS; MODBUS; Optional LON

Analog Inputs Ai Pc	3 pc
Application Area	Temperature control
Approval	C-TICK
China Rohs Compliance	Out of scope
Communication Type	MODBUS
Controller Type	Refrig. Controller (Temp)
Digital Inputs Di Pc	2 pc
Digital Outputs Do Pc	4 pc
Display On Front	Yes
Display Option	EKA 163A
Eu Rohs Compliance	Out of scope
Frequency Hz	50/60 Hz
Function	Temp, Multi appli. 4 relays
Further Information	Alarm=More func. Fan 2^nd Comp
Number Of Compressors Max	2 pc
Number Of Evaporators Max	1 pc
Number Of Sensor Inputs	3 pc
Other Rohs Documentation	EAEU RoHS
Packing Format	Multi pack
Power Consumption Va	2.3 VA
Product Accessories	Electron. control accessories
Product Group	Evaporator and room control
Product Name Description	Refrig appliance control (TXV)
Quantity Per Packing Format	20 pc
Reach Candidate List Substances	No
Sensor Type	Temp.Sensors
Serviceable	No
Supply Voltage V Ac	230 V
Temp Sensor Support	NTC-M2020
Type	AK-CC 350
Uk Rohs Compliance	Out of scope
Valve Output Type	EVR (TXV)
Volume	1.083 Liter
