Danfoss

Danfoss 120G0299

SKU: CS5082171MPN: 120G0299

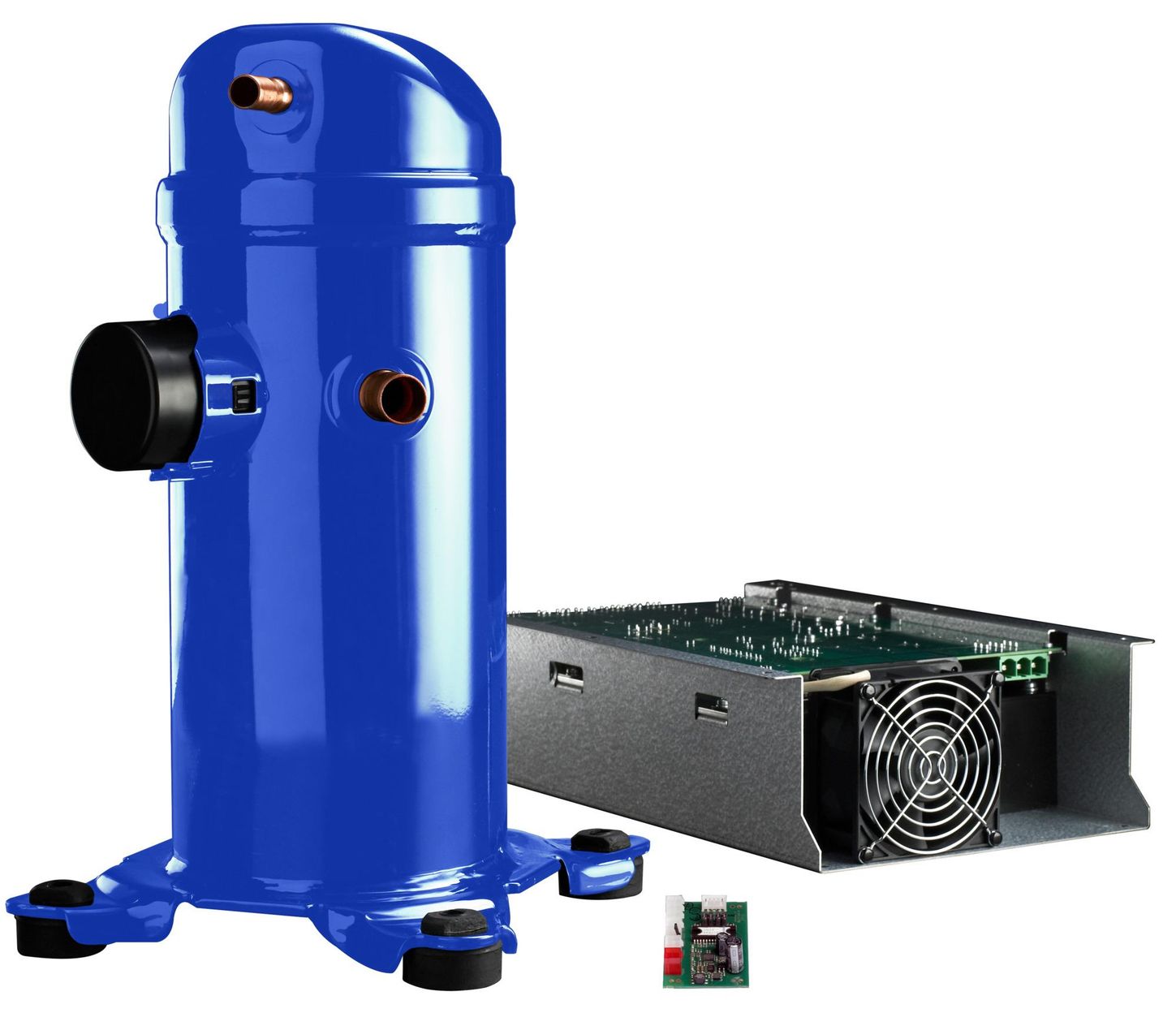

Scroll compressor, VRJ044UKNP6

Danfoss 120G0299
Contact us for pricing and availability

Product Details

Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 230/1/60, Packing format: Single pack

Attributes

Approval CE
Brand Technique Scroll compressor
Capacity Control Inverter
China Rohs Compliance Out of scope
Colour Blue
Compressor Power Supply V 230/1/60
Configuration Code Single
Connection Type Brazed
Diameter Mm 165 mm
Discharge Connection Pipe Size In ½ in
Discharge Connection Size In ½ in
Drawing Number 0XC6301B-2
Economizer No
Eu Rohs Compliance Yes with exemptions
Eu Rohs Exemption Clause 6(a), 6(a)-I, 7(a), 7©-I, 8(b), 9(b)
Family VRJ
Fitting Standard ODF
Frequency Hz 35 - 90
Gauge Port Hp None
Gauge Port Lp None
Gaz Equalization None
Glass Mounting None
High Value Of Nominal Voltage At 50Hz V 230 V
High Value Of Nominal Voltage At 60Hz V 230 V
High Value Of Voltage Range At 50Hz V 253 V
High Value Of Voltage Range At 60Hz V 253 V
In Scope Of Weee And Contain Batteries No
Ip Protection Class IP22
Low Value Of Nominal Voltage At 50Hz V 208 V
Low Value Of Nominal Voltage At 60Hz V 208 V
Low Value Of Voltage Range At 50Hz V 187 V
Low Value Of Voltage Range At 60Hz V 187 V
Lra 12 A
Max Pressure Ps High Side 46.1 bar
Max Pressure Ps Low Side 31.1 bar
Mcc 30 A
Model Number VRJ044UKNP6
Motor Protection Motor protection by frequency converter
Network Power Supply V Ph Hz 220-240/1/50 208-230/1/60
Number Of Starts Per Hour Max 12
Oil Charge L 1.33 L
Oil Equalization None
Oil Level Switch Port No
Oil Reference 160HV
Oil Type PVE
Packing Format Single pack
Packing Quantity 1
Phase 1
Power Connections Spade
Product Group Hermetic compressors
Product Name Description Scroll compressor VRJ
Refrigerant Charge Kg Max 3.63 kg
Refrigerants R410A
Rla 21.4 A
Segment Usage Air conditioning
Shipped Mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped Oil Initial oil charge
Suction Connection Material -
Suction Connection Pipe Size In ¾ in
Suction Connection Size In ¾ in
Swept Volume Cm3 43.43 cm³
Technology Scroll
Type VRJ044
Uk Rohs Compliance Out of scope
Viscosity Cp 32 cP
Volume 0.1 Cubic.mtr
Winding Resistance For Three Phase Compressors With Identical Windings Ohm 0.210 Ohm

Specifications

SKUCS5082171
MPN120G0299
