All ProductsDanfoss

Danfoss 121L3275

SKU: CS5082879MPN: 121L3275

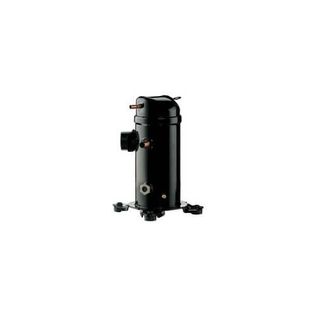

Scroll compressor, HRP058T2LC6

Contact us for pricing and availability

Product Details

Refrigerants: R407C, Segment usage: Air conditioning, Compressor power supply [V]: 200-220/3/50 208-230/3/60, Packing format: Single pack

Attributes

Approval CE
Brand Technique Scroll compressor
Capacity Control Fixed speed
China Rohs Compliance Out of scope
Colour Blue
Compressor Power Supply V 200-220/3/50 208-230/3/60
Configuration Code Single
Connection Type Brazed
Discharge Connection Pipe Size In ½ in
Discharge Connection Size In ½ in
Economizer No
Eu Rohs Compliance Yes with exemptions
Eu Rohs Exemption Clause 6(a), 6(a)-I, 7(a), 7©-I, 8(b), 9(b)
Family HRP
Frequency Hz 50/60
Gaz Equalization None
High Value Of Nominal Voltage At 50Hz V 220 V
High Value Of Nominal Voltage At 60Hz V 230 V
High Value Of Voltage Range At 50Hz V 242 V
High Value Of Voltage Range At 60Hz V 253 V
In Scope Of Weee And Contain Batteries No
Ip Protection Class IP22
Low Value Of Nominal Voltage At 50Hz V 200 V
Low Value Of Nominal Voltage At 60Hz V 208 V
Low Value Of Voltage Range At 50Hz V 180 V
Low Value Of Voltage Range At 60Hz V 187 V
Max Pressure Ps High Side 31.1 bar
Max Pressure Ps Low Side 26.2 bar
Model Number HRP058T2LC6
Motor Protection Internal overload protector
Network Power Supply V Ph Hz 200-230/3/50 208-230/3/60
Number Of Starts Per Hour Max 12
Oil Charge L 1.57 L
Packing Format Single pack
Packing Quantity 1
Phase 3
Power Connections Screw connectors 10-32 UNF x 9.5
Product Group Hermetic compressors
Product Name Description Scroll compressor HRP
Refrigerants R407C
Rotational Speed At 50Hz Rpm 2900 rpm
Rotational Speed At 60Hz Rpm 3500 rpm
Segment Usage Air conditioning
Suction Connection Material -
Suction Connection Pipe Size In ⅞ in
Suction Connection Size In ⅞ in
Technology Scroll
Torque Earth Nm 2 N-m
Torque Power Nm 3 N-m
Type HRP058
Uk Rohs Compliance Out of scope
Volume 0.1 Cubic.mtr

Specifications

SKUCS5082879
MPN121L3275
