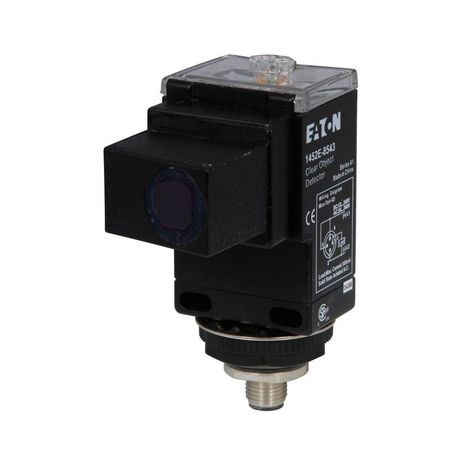

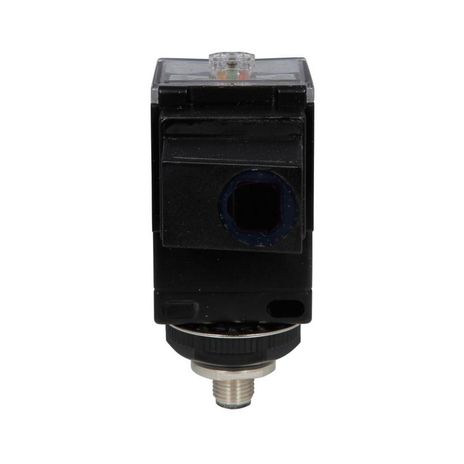

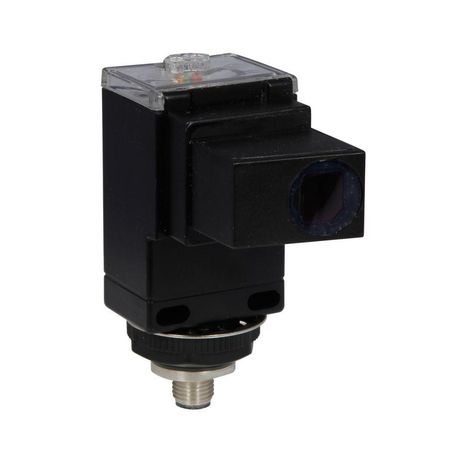

Eaton 1452E-8543
SKU: CS5019212MPN: 1452E-8543UPC/EAN: 782116111961
Eaton Enhanced 50 photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Photoelectric Sensor, Clear Object Detector, Forward Viewing, Output (green), power (yellow), alignment (red), Dual key micro, 300 mA at 240 Vac/dc, 4 pin, Time delayed, SPNO SSR, 24-240 Vac, 12-240 Vdc
Attributes
| Connection | Dual key micro |
| Contact Configuration | SPNO SSR |
| Contact Rating | 300 mA at 240 Vac/dc |
| Enclosure Material | Fiberglass reinforced plastic |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 24-240 Vac, 12-240 Vdc |
| Led Indicator | Output: green Alignment: red Power: yellow |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Number Of Pins | 4.0000 |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Output short circuit, overcircuit and reverse polarity |
| Sensor Type | Clear object detector |
| Time Delay | Time delayed |
Specifications
| SKU | CS5019212 |
|---|---|
| MPN | 1452E-8543 |
| UPC/EAN | 782116111961 |
