Eaton 12102A6513
SKU: CS5018475MPN: 12102A6513UPC/EAN: 782113887050

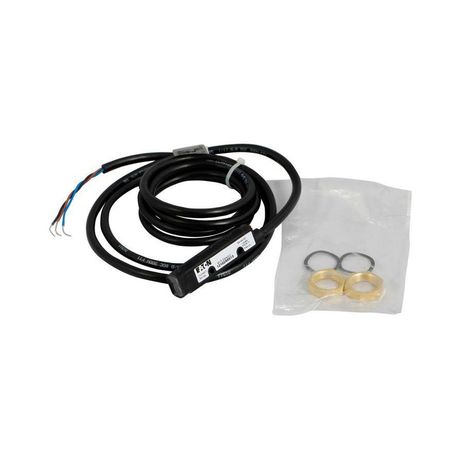

Eaton Comet 18mm tubular photoelectric sensor
$464.15
UnitAvailable on backorder
Product Details
Eaton Comet 18mm tubular photoelectric sensor, Forward Viewing, Sensor dist 80 Ft., 300 mA max AC/DC, AC: L1 Switched, DC: NPN Open coll, 300 mA AC/DC at 20-264Vac/15-30Vdc Cable, 20-264 Vac/15-30 Vdc input, Thru-beam
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 6.6 ft (2 m) cable |
| Contact Configuration | DC: NPN open collector AC: L1 switched |
| Contact Rating | 300 mA AC/DC at 20-264Vac/15-30Vdc |
| Enclosure Material | Body: structural polyurethane foam Lens: polycarbonate Cable jacket: PVC |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP68, IP69K |
| Input Voltage | 20-264 Vac, 15-30 Vdc |
| Led Indicator | Output status: red |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Operating Mode | Thru-beam |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Latching short circuit |
| Sensor Type | Through beam |
| Switch Type | Photoelectric |
Specifications
| SKU | CS5018475 |
|---|---|
| MPN | 12102A6513 |
| UPC/EAN | 782113887050 |
