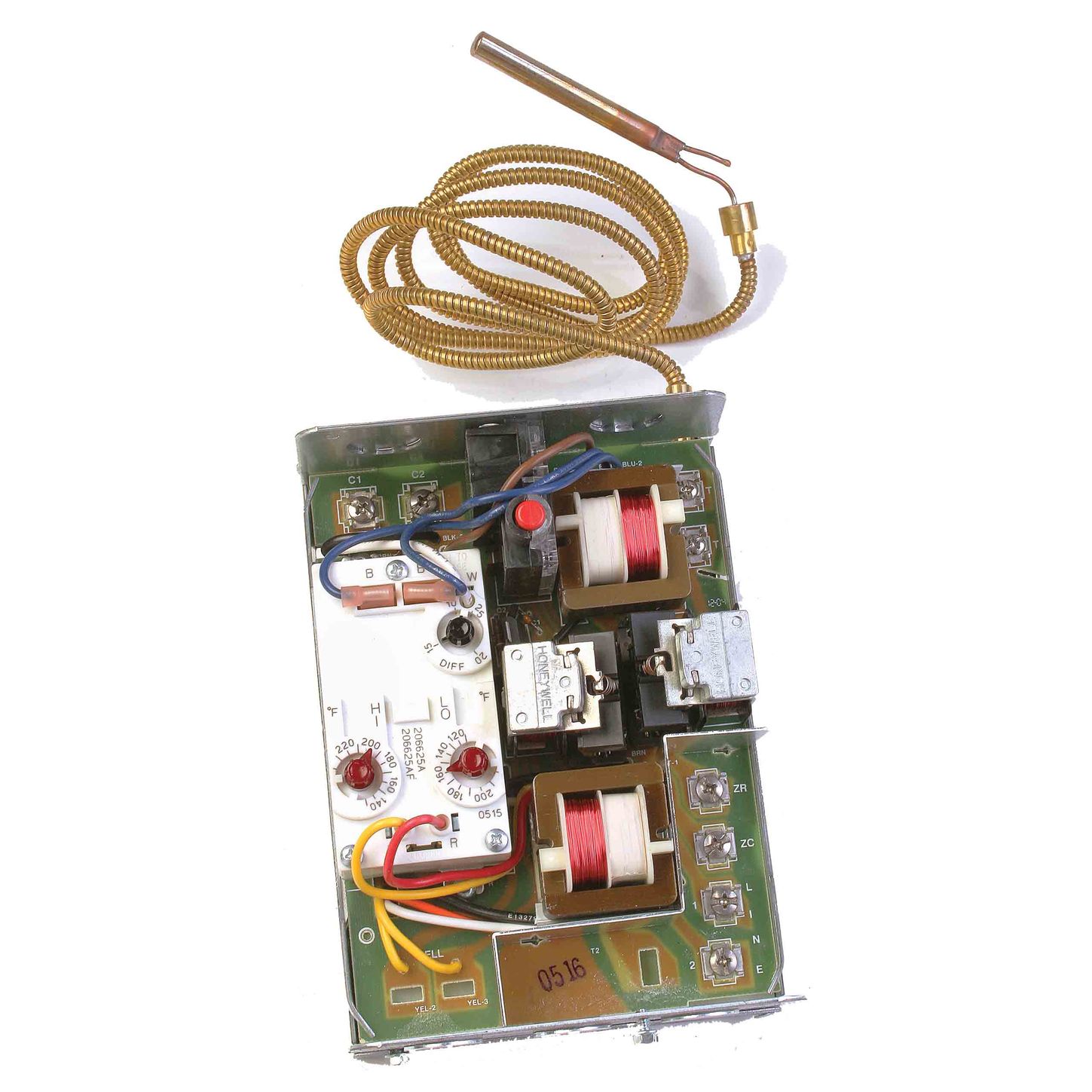

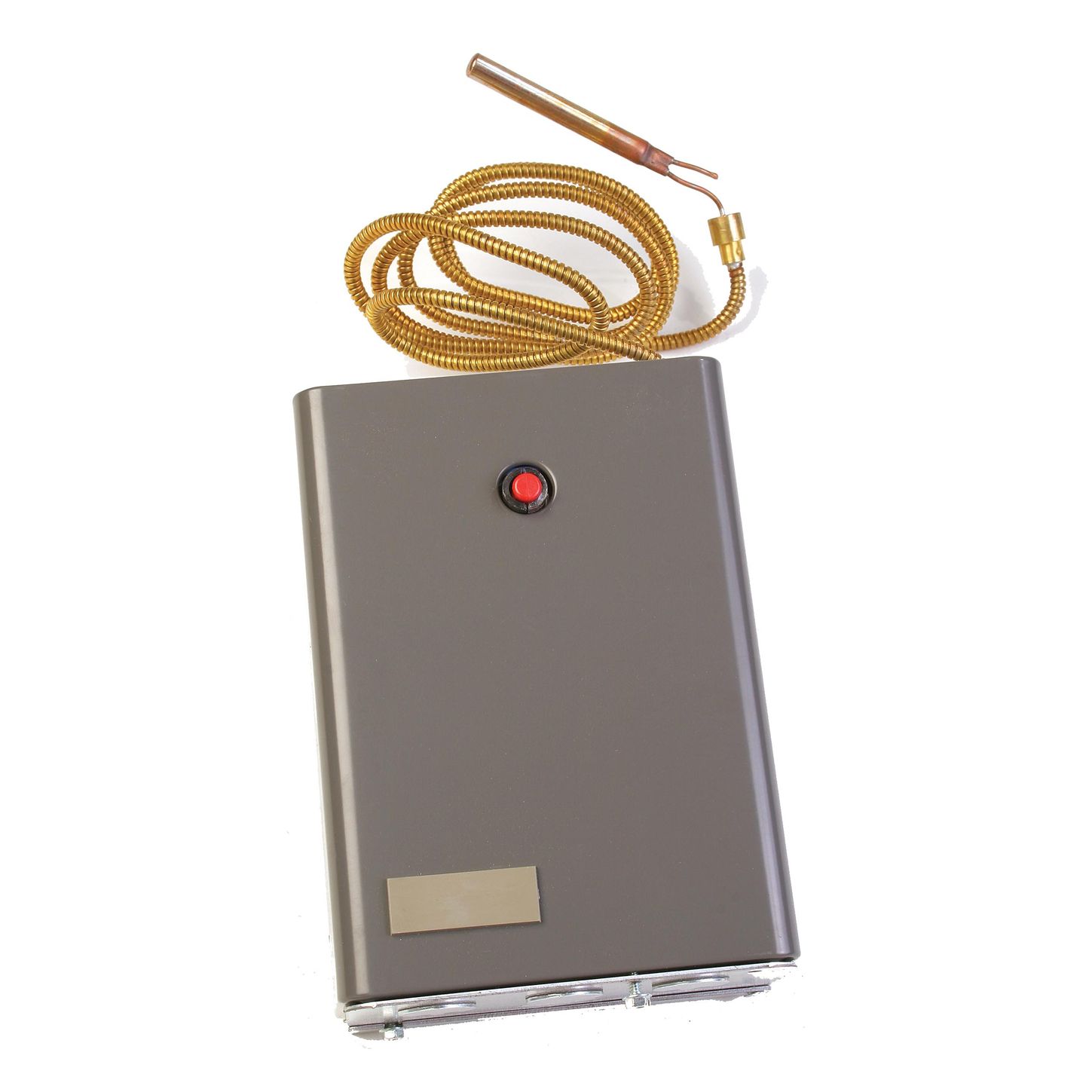

Resideo R8182H1070

Combination Protectorelay® and Hydronic Heating Control. Junction box mount

Immersion type Aquastat controller and oil burner primary control provides high limit and low limit/circulator control for oil-fired hydronic heating systems.

Specifications

• Use in intermittent ignition applications.
• Capable of zone control with zone valves.
• Circulator zone control with ZC and ZR terminals on R8182D,E,H,J. 8 Flame failure during the running cycle results in a 45 second attempt to restart.
• If unsuccessful, safety shutoff occurs, requiring manual reset before burner can be restarted.
• R8182D,E,F mount directly on burner; R8182H,J mount on 4 x 4 in. junction box and include 5 ft (1.5 m) armored capillary with remote sensor.
• C554A Cadmium Sulfide Flame Detector and a 24 Vac thermostat required.

Features

• Description: Combination Protectorelay and Hydronic Heating Control with High limit: 10 F fixed; low limit/circulator: 10 F to 25 F adj. Differential
• Switching Action: SPST
• Operating Range, Low Limit (F): 110 to 220 F
• Operating Range, High Limit (F): 130 to 240 F
• Differential Temperature: High limit: 10 F fixed; Low limit/circulator: 10 F to 25 F adj.
• Anticipator Setting: .2A
• Maximum Safe Operating Pressure (psi): 200 psi on immersion well; 100 psi direct immersion.
• Electrical Rating (ignition): 360 VA
• Electrical Ratings (burner AFL): 4.4 A @ 120 Vac
• Voltage: 120 Vac
• Frequency: 60 Hz
• Timing Safety Switch: 45 sec
• Maximum Power Consumption: 9W
• Dimensions: 7 ⅛ in. high x 5 ¼ in. wide x 3 7/16 in. deep.
• Insulation Depth (in.): 1-½ inch
• Mounting: Junction box mount
• Operating Humidity Range: 0 to 95% RH, non-condensing
• Max Ambient Temp: 250 F at element
• Includes: Auxiliary ZC and ZR terminals may be used to provide circulator zone control through an R845A Switching Relay. Heat-conductive compound and vertical case
