Eaton HPC4046SHLX

Name: Eaton HPC4046SHLX
Brand: Eaton
SKU: CS4885984
Availability: OutOfStock

SKU: CS4885984MPN: HPC4046SHLXUPC/EAN: 786685376547

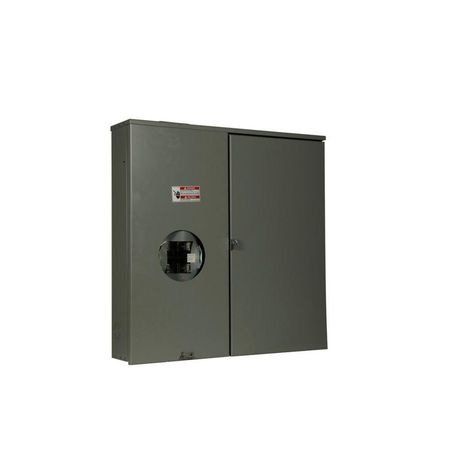

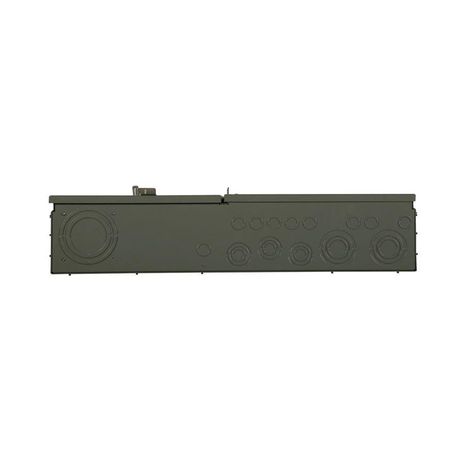

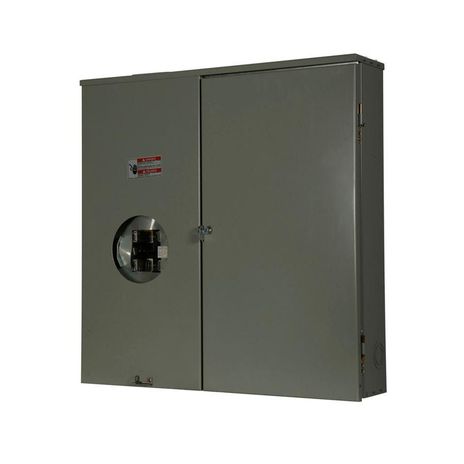

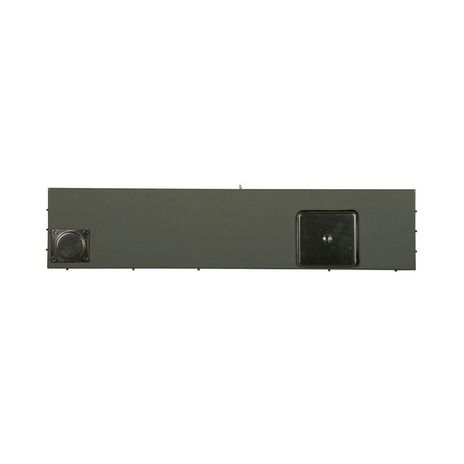

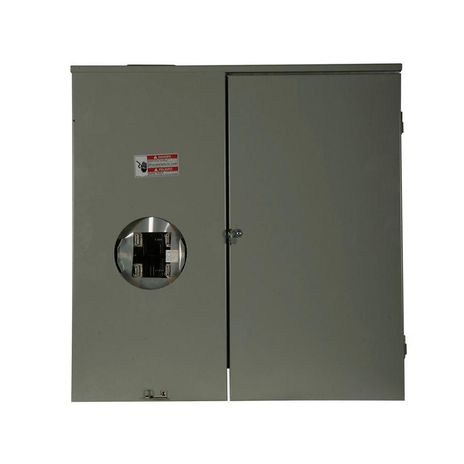

Eaton house panel

Product Details

Eaton House Panel, CSR2200 main, BRH/BWH secondary breaker, 400A, 120/240V, Ringless, 4 spaces, 6 circuits, 22 kAIC, Surface mounting, Aluminum bus, OH/UG feed, Lever bypass, 1 socket, Lug landings for compression lugs not included

Attributes

Amperage Rating	400 A
Bus Material	Aluminum
Bypass	Lever
Enclosure	NEMA 3R
Feed Type	Top/bottom
Interrupt Rating	10 kAIC
Line	Lug landings for compression, lugs not included
Main Circuit Breaker	CSR2200
Mounting	Surface
Number Of Circuits	6.0000
Number Of Sockets	1.0000
Number Of Spaces	4.0000
Secondary Circuit Breaker	BRH/BWH
Security	Ringless
Type	House panel
Used With	Type BR breakers
Utility Approvals	CO : Xcel Energy MI : Xcel Energy MN : Xcel Energy ND : Xcel Energy NM : Xcel Energy SD : Xcel Energy TX : Xcel Energy WI : Xcel Energy
Voltage Rating	120/240 V
Voltage Rating Uom	AMP
