Eaton HP404040SH

Name: Eaton HP404040SH
Brand: Eaton
SKU: CS4886006
Availability: OutOfStock

SKU: CS4886006MPN: HP404040SHUPC/EAN: 782114868713

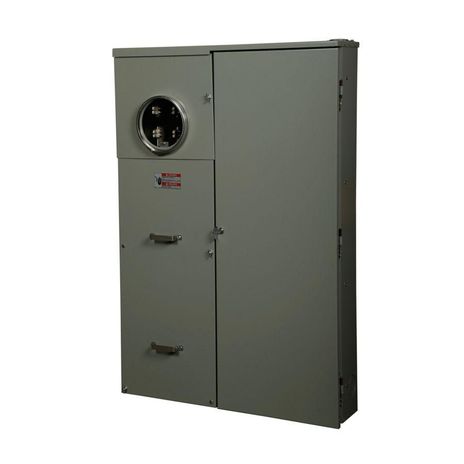

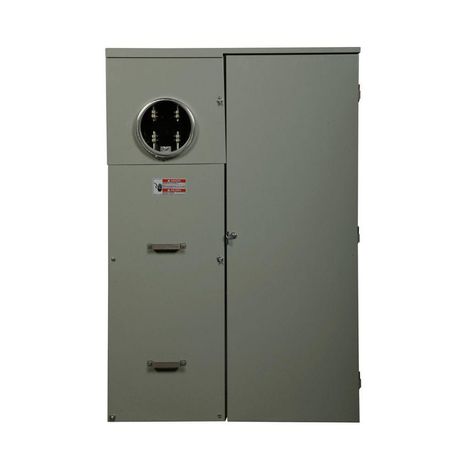

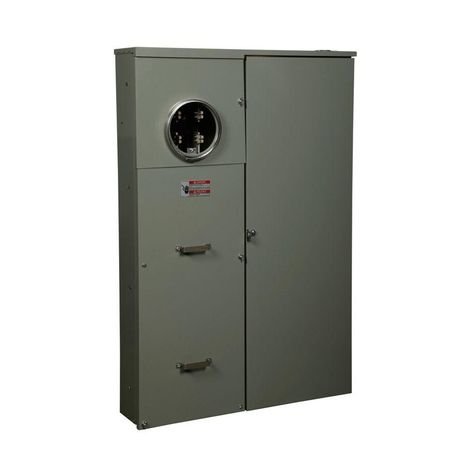

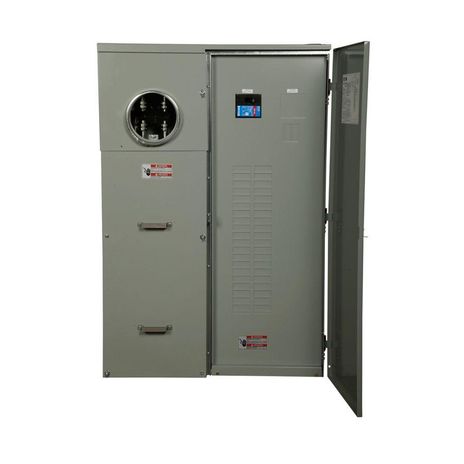

Eaton house panel

Product Details

Eaton house panel, 400A, Aluminum, No bypass, NEMA 3R, Underground, 22 kAIC, Lug landings for compression, lugs not included, CSR2200, Surface mounting, C:40, S:1, SP:40, BRH/BWH, Ring, Type BR breakers, 120/240V, 4306, Single-phase

Attributes

Amperage Rating	400 A
Bus Material	Aluminum
Enclosure	NEMA 3R
Feed Type	Bottom
Interrupt Rating	10 kAIC
Line	Lug landings for compression, lugs not included
Main Circuit Breaker	CSR2200
Mounting	Surface
Number Of Circuits	40.0000
Number Of Sockets	1.0000
Number Of Spaces	40.0000
Secondary Circuit Breaker	BRH/BWH
Security	Ring
Type	House panel
Used With	Type BR breakers
Voltage Rating	120/240 V
Voltage Rating Uom	AMP
