Eaton HP404040SHFA

Name: Eaton HP404040SHFA
Brand: Eaton
SKU: CS4886009
Availability: OutOfStock

SKU: CS4886009MPN: HP404040SHFAUPC/EAN: 782116959976

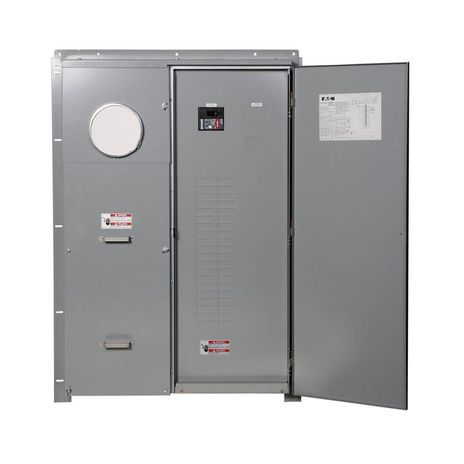

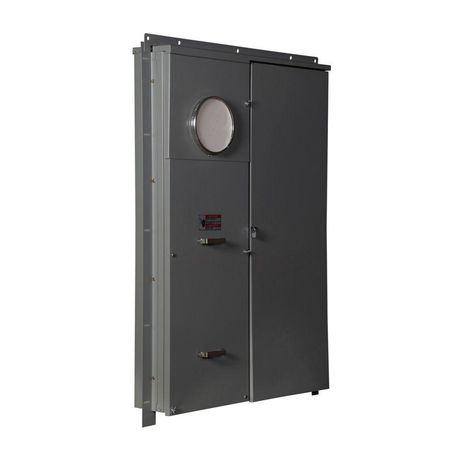

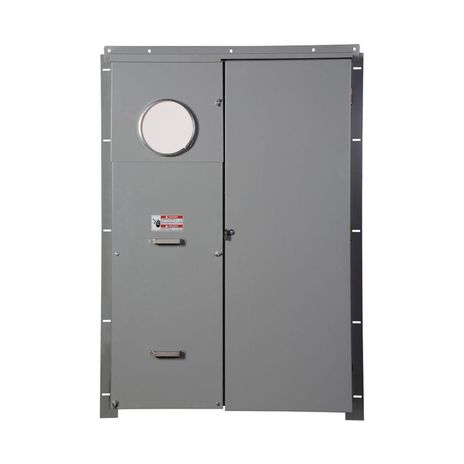

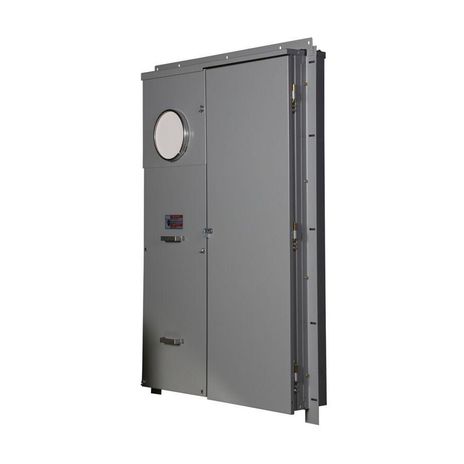

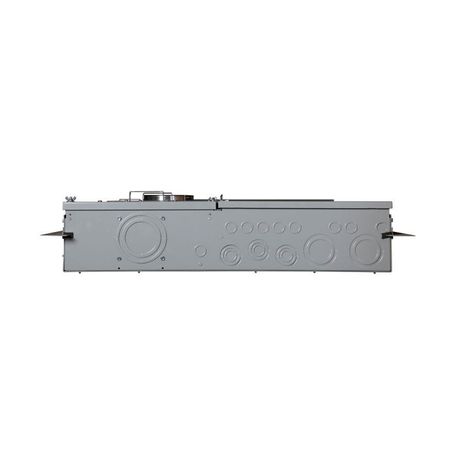

Eaton house panel

Eaton HP404040SHF, HP404040SHFA, HP404040SHPVBR, HP404040SHPVCSR

Eaton HP404040SHFA, HP404040SHPVBR, HP404040SHPVCSR

Product Details

Eaton house panel, 400A, Aluminum, Manual bypass, NEMA 3R, Underground, 22 kAIC, Lug landings for compression, lugs not included, CSR2200, Semi-flush mounting, C:40, S:1, SP:40, BRH/BWH, Ring, Type BR breakers, 120/240V, 4306

Attributes

Amperage Rating	400 A
Bus Material	Aluminum
Bypass	Manual
Enclosure	NEMA 3R
Feed Type	Bottom
Interrupt Rating	10 kAIC
Line	Lug landings for compression, lugs not included
Main Circuit Breaker	CSR2200
Mounting	Semi-flush
Number Of Circuits	40.0000
Number Of Sockets	1.0000
Number Of Spaces	40.0000
Secondary Circuit Breaker	BRH/BWH
Security	Ring
Type	House panel
Used With	Type BR breakers
Voltage Rating	120/240 V
Voltage Rating Uom	AMP
