Eaton FG3200S02
SKU: CS4876930MPN: FG3200S02UPC/EAN: 786679108604

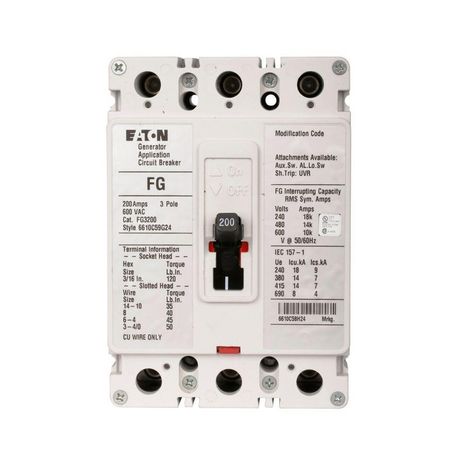

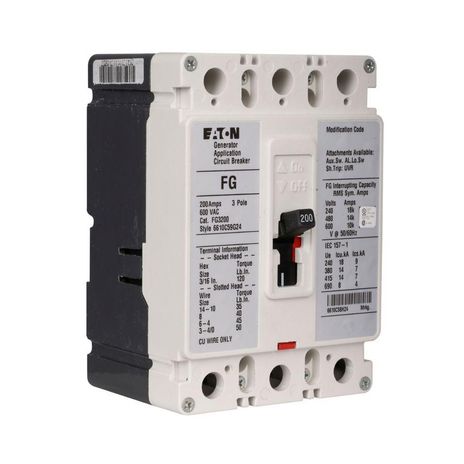

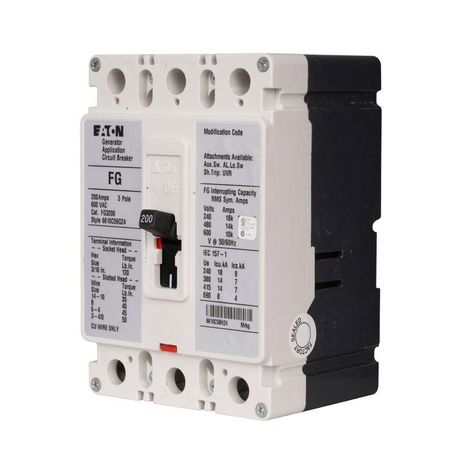

Eaton Series C complete molded case circuit breaker
$2,646.54
UnitAvailable on backorder
Product Details
Eaton Series C complete molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 200A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc rear w/ left pigtail, Reverse, 60 Hz
Attributes
| Amperage Rating | 200 A |
| Circuit Breaker Frame Type | Complete breaker |
| Circuit Breaker Type | FG |
| Class | Engine generator |
| Frame | F |
| Frequency Rating | 60 Hz |
| Functions | Reverse |
| Generator Rating | 72 kVA/58 kW at 240 Vac, 144 kVA/116 kW at 480 Vac, 181 kVA/144 kW at 600 Vac |
| Interrupt Rating | 14 kAIC at 480 Vac 18 kAIC at 240 Vac |
| Number Of Poles | Three-pole |
| Pickup | Fixed |
| Shunt Trip | 12-24 Vac/dc rear with left pigtail shunt |
| Terminals | Line and load |
| Trip Type | Fixed thermal, fixed magnetic |
| Voltage Rating | 600 Vac |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS4876930 |
|---|---|
| MPN | FG3200S02 |
| UPC/EAN | 786679108604 |
