Eaton FG3225S02

SKU: CS4876937MPN: FG3225S02UPC/EAN: 786679118276

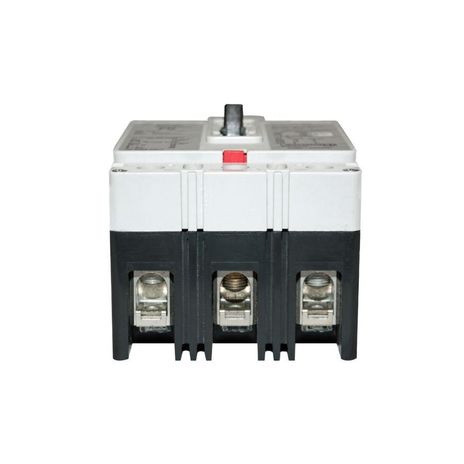

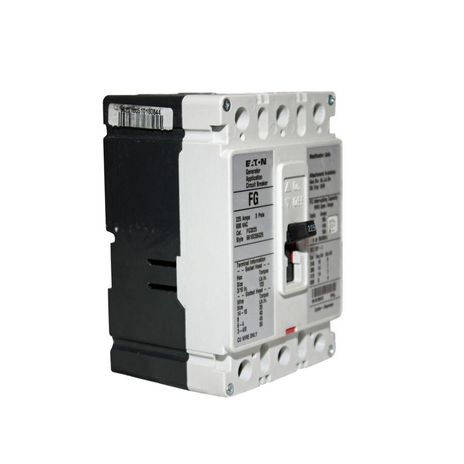

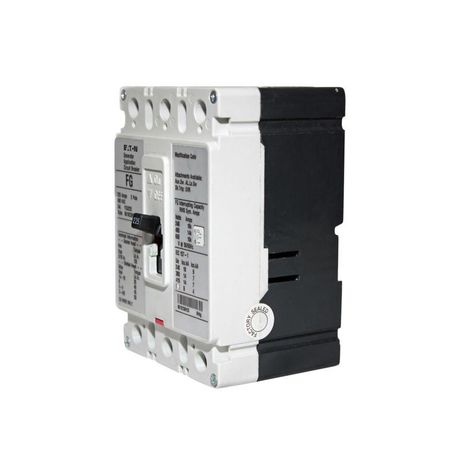

Eaton Series C complete molded case circuit breaker

$3,044.54
Unit
Available on backorder
remove
add

Product Details

Eaton Series C complete molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 225A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, 12-24 Vac/dc rear w/ left pigtail, Reverse, 60 Hz

Attributes

Amperage Rating 225 A
Circuit Breaker Frame Type Complete breaker
Circuit Breaker Type FG
Class Engine generator
Frame F
Frequency Rating 60 Hz
Functions Reverse
Generator Rating 81 kVA/65 kW at 240 Vac, 162 kVA/130 kW at 480 Vac, 203 kVA/162 kW at 600 Vac
Interrupt Rating 14 kAIC at 480 Vac 18 kAIC at 240 Vac
Number Of Poles Three-pole
Pickup Fixed
Shunt Trip 12-24 Vac/dc rear with left pigtail shunt
Terminals Line and load
Trip Type Fixed thermal, fixed magnetic
Voltage Rating 600 Vac
Voltage Rating Uom AMP

Specifications

SKUCS4876937
MPNFG3225S02
UPC/EAN786679118276
