Eaton FG3150WS02
SKU: CS4876919MPN: FG3150WS02UPC/EAN: 786685106168

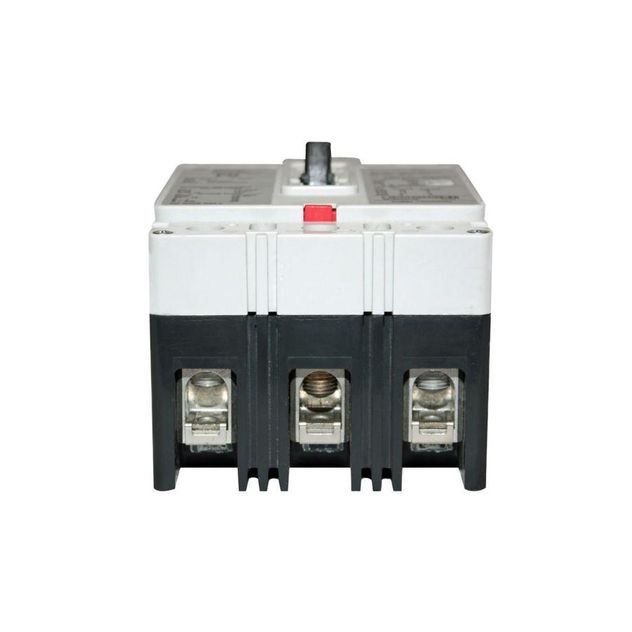

Eaton Series C complete molded case circuit breaker
$2,896.72
UnitAvailable on backorder
Product Details
Eaton Series C complete molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 150A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, No term., Engine gen., 12-24 Vac/dc rear w/ left pigtail, Reverse, 60 Hz
Attributes
| Amperage Rating | 150 A |
| Circuit Breaker Frame Type | Complete breaker |
| Circuit Breaker Type | FG |
| Class | Engine generator |
| Frame | F |
| Frequency Rating | 60 Hz |
| Functions | Reverse |
| Generator Rating | 54 kVa/43 kW at 240V, 108 kVA/87 kW at 480V, 135 kVA/108 kW at 600V |
| Interrupt Rating | 18 kAIC at 240 Vac 14 kAIC at 480 Vac |
| Number Of Poles | Three-pole |
| Pickup | Fixed |
| Shunt Trip | 12-24 Vac/dc rear with left pigtail shunt |
| Terminals | Without terminals |
| Trip Type | Fixed thermal, fixed magnetic |
| Voltage Rating | 600 Vac |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS4876919 |
|---|---|
| MPN | FG3150WS02 |
| UPC/EAN | 786685106168 |
