Eaton E59-A12A104C02-CV
SKU: CS4873553MPN: E59-A12A104C02-CVUPC/EAN: 786685104447

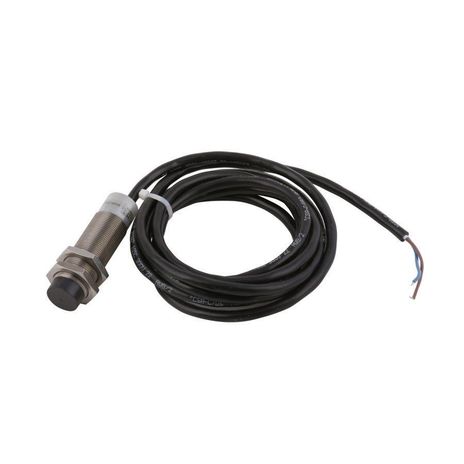

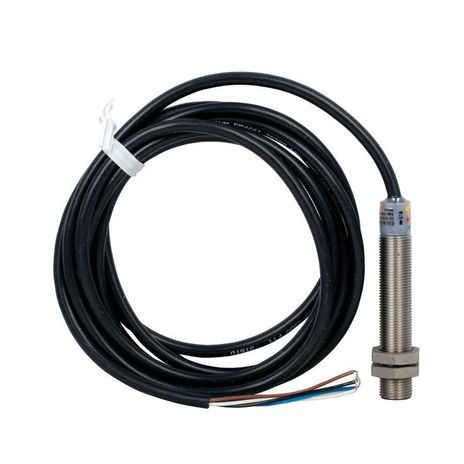

Eaton E59 AccuProx analog inductive proximity sensor
Contact us for pricing and availability
Product Details
Eaton AccuProx Series Tubular Analog Output Inductive Proximity Sensor Enclosure, 0.47 dia, Straight, Sensor dist. 4 mm, Tube: Stainless Steel, 6.6 Ft. (2m) Cable, 15-30 Vdc input, \< 25um after 1 hour warmup accuracy, Shielded, 6.6 Ft. (2m)
Attributes
| Accuracy | < 25 um after 1 hour warmup |
| Actuator Function | Shielded |
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 6.6 ft (2 m) cable |
| Enclosure Material | Tube: stainless steel Front cap: polyphenylene sulfide End bell: polycarbonate |
| Environmental Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K |
| Input Voltage | 15-30 Vdc |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Reverse polarity and short circuit |
| Sensor Type | Analog inductive proximity Inductive proximity |
| Series | E59 |
Specifications
| SKU | CS4873553 |
|---|---|
| MPN | E59-A12A104C02-CV |
| UPC/EAN | 786685104447 |
