Eaton E59-A18C115C02-CV

Name: Eaton E59-A18C115C02-CV
Brand: Eaton
SKU: CS3611743
Price: 689.49 USD
Availability: OutOfStock

SKU: CS3611743MPN: E59-A18C115C02-CVAlternate Part #: 41-3191-130UPC/EAN: 786685104621

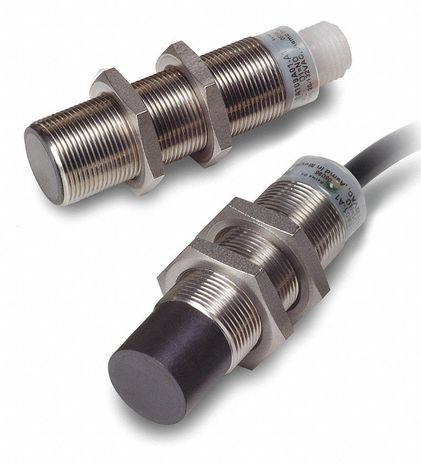

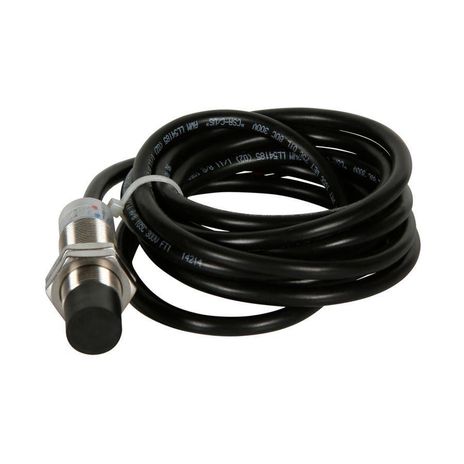

Eaton E59 AccuProx analog inductive proximity sensor

Eaton E59-A18A107C02-CV, E59-A18A107D01-CV, E59-A18C115C02-CV

Eaton E59-A18A107C02-CV, E59-A18A107D01-CV, E59-A18C115C02-CV, E59-A18C115D01-CV

Product Details

Eaton AccuProx Series Tubular Analog Output Inductive Proximity Sensor Enclosure, 0.71 dia, Straight, Sensor dist. 15 mm, Tube Stainless Steel, 6.6 Ft. (2m) Cable, 15-30 Vdc input, \< 20um after 1 hr warmup accuracy, Un-shielded

Attributes

Accuracy	< 20 um after 1 hour warmup
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Enclosure Material	End bell: polycarbonate Front cap: polyphenylene sulfide Tube: stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	15-30 Vdc
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Reverse polarity and short circuit
Sensor Type	Analog inductive proximity Inductive proximity
Series	E59
