Eaton E59-A12A104C02-C1

Name: Eaton E59-A12A104C02-C1
Brand: Eaton
SKU: CS4873554
Price: 600.93 USD
Availability: OutOfStock

SKU: CS4873554MPN: E59-A12A104C02-C1Alternate Part #: 41-3190-97UPC/EAN: 786685104416

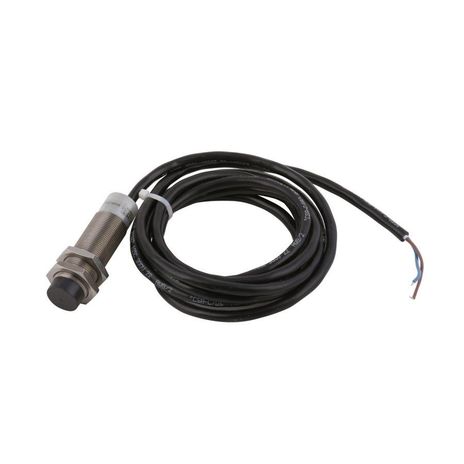

Eaton E59 AccuProx analog inductive proximity sensor

Product Details

Eaton AccuProx Series Tubular Analog Output Inductive Proximity Sensor Enclosure, 0.47 dia, Straight, Sensor dist.: 4 mm, Tube Stainless Steel, 6.6 Ft. (2m) Cable, 15-30 Vdc input, \< 25um after 1 hr warmup accuracy, 6.6 Ft. (2m)

Attributes

Accuracy	< 25 um after 1 hour warmup
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Enclosure Material	Tube: stainless steel Front cap: polyphenylene sulfide End bell: polycarbonate
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	15-30 Vdc
Led Indicator	Green power on turns red when a target is within range
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Reverse polarity and short circuit
Sensor Type	Inductive proximity Analog inductive proximity
Series	E59
