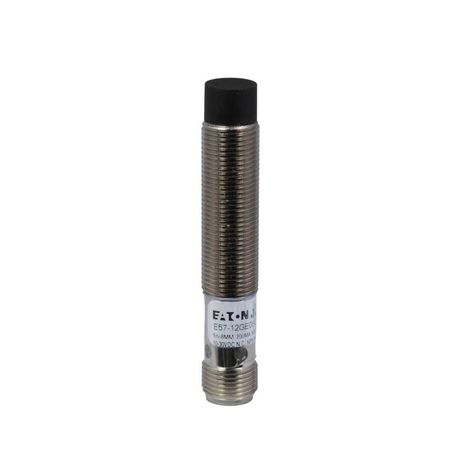

Eaton E57-12GE08-D1DB

Name: Eaton E57-12GE08-D1DB
Brand: Eaton
SKU: CS4872636
Price: 185.38 USD
Availability: OutOfStock

SKU: CS4872636MPN: E57-12GE08-D1DBUPC/EAN: 782116072620

Eaton E57 inductive proximity sensor

Eaton E57-12GE08-D, E57-12GE08-D1, E57-12GE08-D1DB, E57-12GE08-D3, E57-12GE08-DDB, E57-12GE10-C

Product Details

E57 Two-Wire Series Tubular Inductive Proximity Sensor, 0.47 dia, Straight, Sensor dist: 8 mm, 100 mA max DC, 2 - Wire DC, NC, 100 mA at 30 Vdc, 4 Pin M12 Connector, 10-30 Vdc input, \< 2% accuracy, Short circuit protected, Un-shielded

Attributes

Accuracy	< 2%
Actuator Function	Unshielded
Connection	4-pin M12 connector
Contact Configuration	2-wire DC, NC
Contact Rating	100 mA at 30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	100 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
