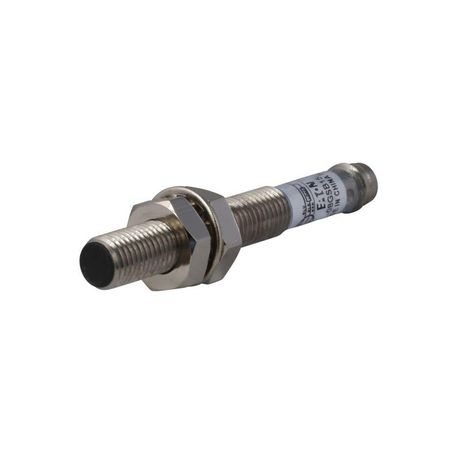

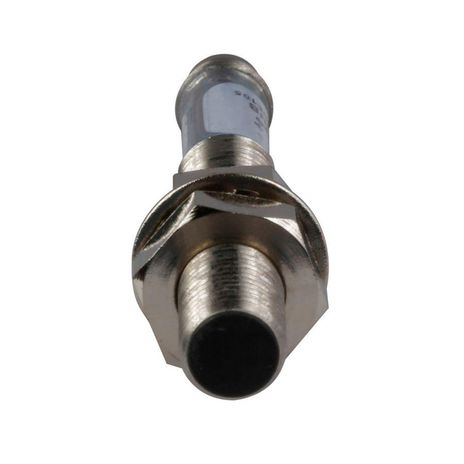

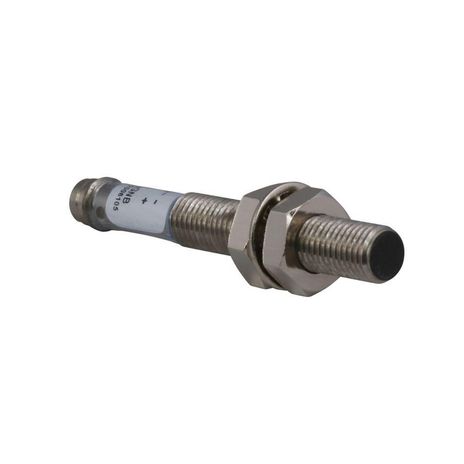

Eaton E57-08GSB15-GNB

Name: Eaton E57-08GSB15-GNB
Brand: Eaton
SKU: CS4872596
Price: 139.03 USD
Availability: OutOfStock

SKU: CS4872596MPN: E57-08GSB15-GNBUPC/EAN: 782116981281

Eaton E57 inductive proximity sensor

Product Details

Eaton Inductive Proximity Sensor, E57, Straight, 8 mm, Shielded, Output ON, M8, 100 mA at 10-30 Vdc, 3 pin, \<1.0% sensing range, PNP open collector, NC, 10-30 Vdc

Attributes

Accuracy	< 1.0% sensing range
Actuator Function	Shielded
Connection	M8
Contact Configuration	PNP open collector, NC
Contact Rating	100 mA at 10-30 Vdc
Enclosure Material	Stainless steel
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output ON
Maximum Dc Current	100 mA
Number Of Pins	3.0000
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit
Series	E57
