Eaton E56ADL40SA
SKU: CS4872544MPN: E56ADL40SAUPC/EAN: 786685224190

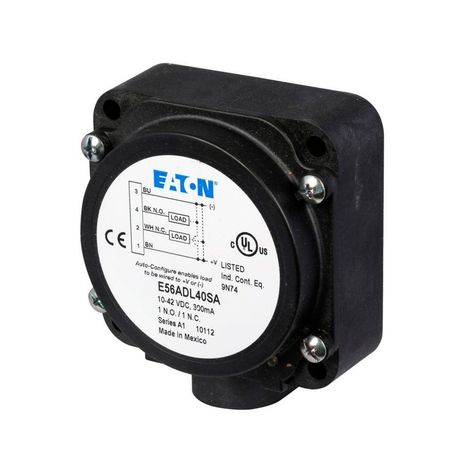

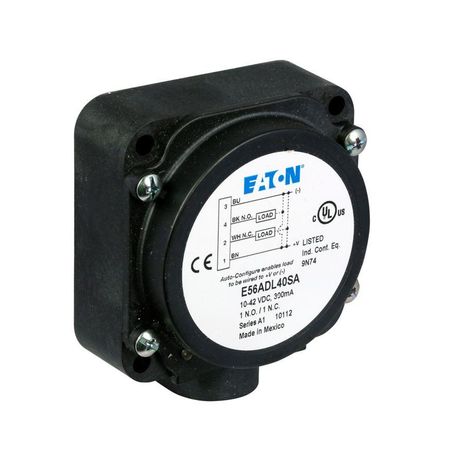

Eaton E56 pancake inductive proximity sensor
Contact us for pricing and availability
Product Details
Inductive Proximity Sensor, E56, Straight, Shielded, Power (green), output status (red), Screw Terminals, 300 mA, \<3%, Complementary NPN/PNP auto-configure, 10-42 Vdc
Attributes
| Accuracy | < 3% |
| Actuator Function | Shielded |
| Connection | Screw terminal |
| Contact Configuration | Complementary NPN/PNP auto-configure |
| Contact Rating | 300 mA |
| Enclosure Material | PPS housing |
| Environmental Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67 |
| Input Voltage | 10-42 Vdc |
| Led Indicator | Power: green Output: status: red |
| Maximum Dc Current | 300 mA |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Short circuit and auto-reset |
| Series | E56 |
| Type | Inductive Proximity Sensor |
Specifications
| SKU | CS4872544 |
|---|---|
| MPN | E56ADL40SA |
| UPC/EAN | 786685224190 |
