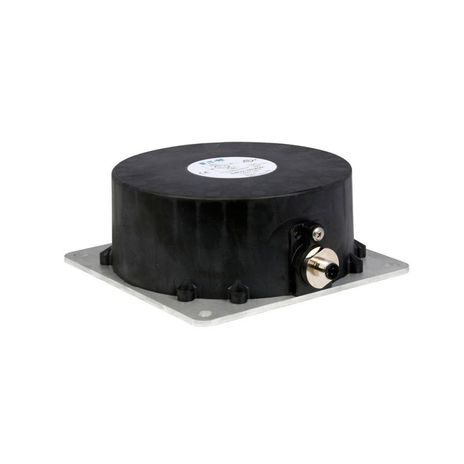

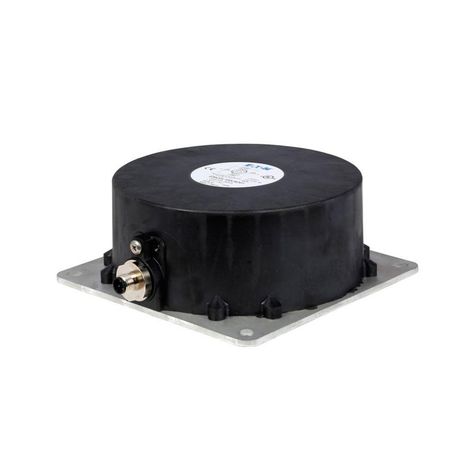

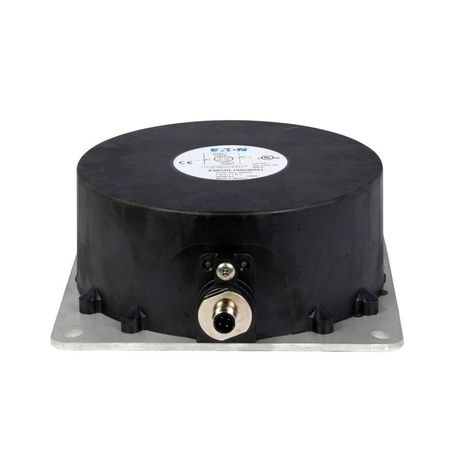

Eaton E56CDL100UAD01
SKU: CS3150237MPN: E56CDL100UAD01UPC/EAN: 786685197272
Eaton E56 pancake inductive proximity sensor
Contact us for pricing and availability
Product Details
E56 Series Pancake Style Inductive Proximity Sensor, Sensor dist: 100 mm, 300 mA max DC, Complementary NPN/PNP Auto-configure, 300 mA at 42 Vdc, 4 Pin M12 Connector, 10-42 Vdc input, \< 2% accuracy, Auto reset, Un-shielded
Attributes
| Accuracy | < 2% |
| Actuator Function | Unshielded |
| Connection | 4-pin M12 connector |
| Contact Configuration | Complementary NPN/PNP auto-configure |
| Contact Rating | 300 mA at 42 Vdc |
| Enclosure Material | PPS housing |
| Environmental Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67 |
| Input Voltage | 10-42 Vdc |
| Led Indicator | Output status |
| Maximum Dc Current | 300 mA |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Short circuit protection with auto reset |
| Sensor Type | Inductive proximity |
Specifications
| SKU | CS3150237 |
|---|---|
| MPN | E56CDL100UAD01 |
| UPC/EAN | 786685197272 |
