Eaton E56CDL100UAE01
SKU: CS3616627MPN: E56CDL100UAE01UPC/EAN: 786685197265

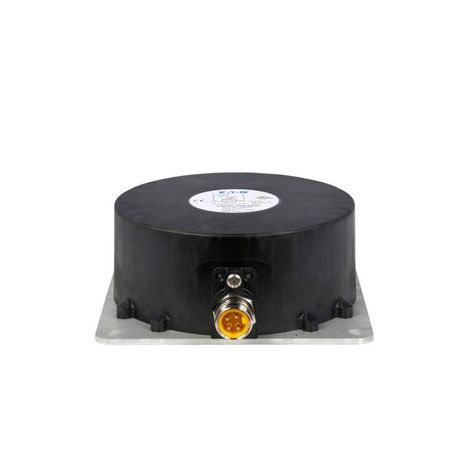

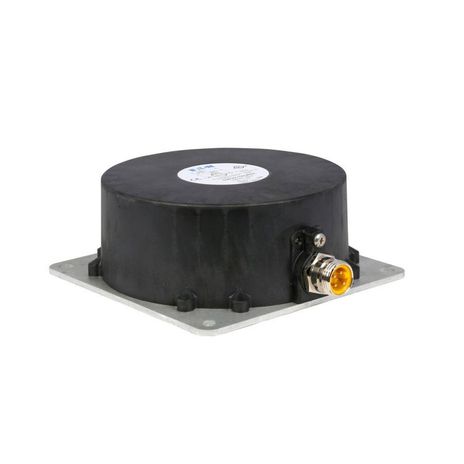

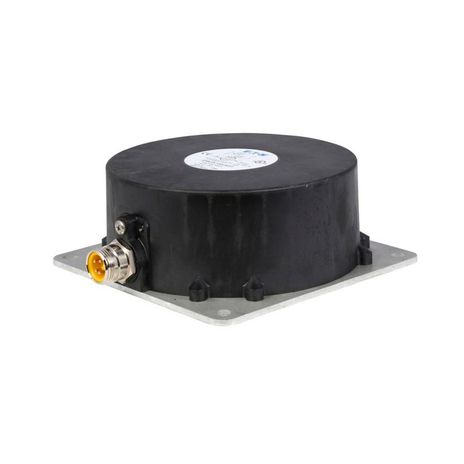

Eaton E56 pancake inductive proximity sensor
Contact us for pricing and availability
Product Details
Inductive Pancake Proximity Sensor, E56, 3.94 in range, Straight, Unshielded, Power (green), output status (red), Mini, 300 mA, 4 pin, \<3%, Complementary NPN/PNP auto-configure, 10-42 Vdc
Attributes
| Accuracy | < 3% |
| Actuator Function | Unshielded |
| Connection | Mini |
| Contact Configuration | Complementary NPN/PNP auto-configure |
| Contact Rating | 300 mA |
| Enclosure Material | PPS housing, aluminum baseplate |
| Environmental Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67 |
| Input Voltage | 10-42 Vdc |
| Led Indicator | Power: green Output: status: red |
| Maximum Dc Current | 300 mA |
| Number Of Pins | 4.0000 |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Short circuit and auto-reset |
| Series | E56 |
| Type | Inductive Pancake Proximity Sensor |
Specifications
| SKU | CS3616627 |
|---|---|
| MPN | E56CDL100UAE01 |
| UPC/EAN | 786685197265 |
