Eaton E53KAL34T111E

Name: Eaton E53KAL34T111E
Brand: Eaton
SKU: CS4872474
Price: 627.29 USD
Availability: OutOfStock

SKU: CS4872474MPN: E53KAL34T111EUPC/EAN: 782113887982

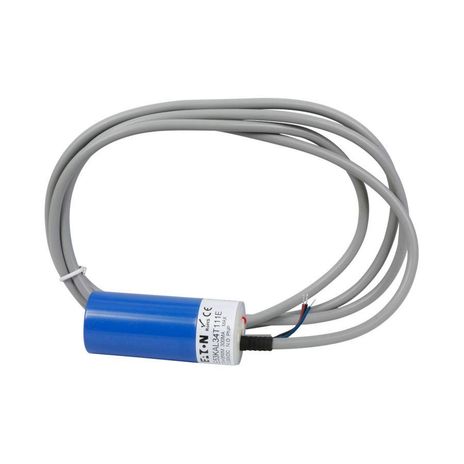

Eaton E53 tubular capacitive proximity sensor

$627.29

Unit

Available on backorder

Quantity

remove

add

Product Details

E53 Series Tubular Capacitive Proximity Sensor, 1.34 dia, dist 35 mm, 300 mA max DC, NO PNP Open Collector, 300 mA SS Output, 8 Ft. (2.5m) Cable, 10–30 Vdc input, \<5% accuracy, Short circuit and reverse polarity, Un-shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 5%
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	8 ft (2.4 m) cable
Contact Configuration	NO PNP open collector
Contact Rating	300 mA Solid State Output
Enclosure Material	Body: polyoxymethylene (POM) Mounting Nuts: nylon 66 (PA66)
Environmental Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 12, NEMA 13, IP65
Input Voltage	10-30 Vdc
Led Indicator	Output status
Maximum Dc Current	300 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit and reverse polarity
Sensor Type	Capacitive proximity
