Eaton E53KAL34T110E

Name: Eaton E53KAL34T110E
Brand: Eaton
SKU: CS4872470
Price: 627.29 USD
Availability: OutOfStock

SKU: CS4872470MPN: E53KAL34T110EUPC/EAN: 782113888002

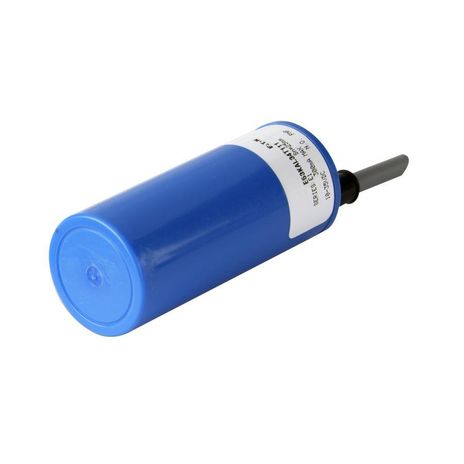

Eaton E53 tubular capacitive proximity sensor

Product Details

E53 Series Tubular Capacitive Proximity Sensor, 1.34 dia, dist 35 mm, 300 mA max DC, NO NPN Open Collector, 300 mA SS Output, 8 Ft. (2.5m) Cable, 10–30 Vdc input, \<5% accuracy, Short circuit and reverse polarity, Un-shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 5%
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	8 ft (2.4 m) cable
Contact Configuration	NO NPN open collector
Contact Rating	300 mA Solid State Output
Enclosure Material	Mounting Nuts: nylon 66 (PA66) Body: polyoxymethylene (POM)
Environmental Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 12, NEMA 13, IP65
Input Voltage	10-30 Vdc
Led Indicator	Output status
Maximum Dc Current	300 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit and reverse polarity
Sensor Type	Capacitive proximity
