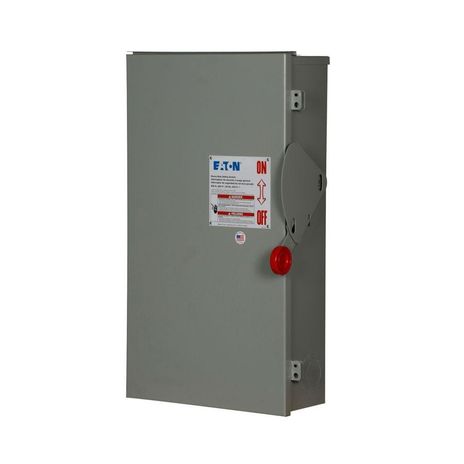

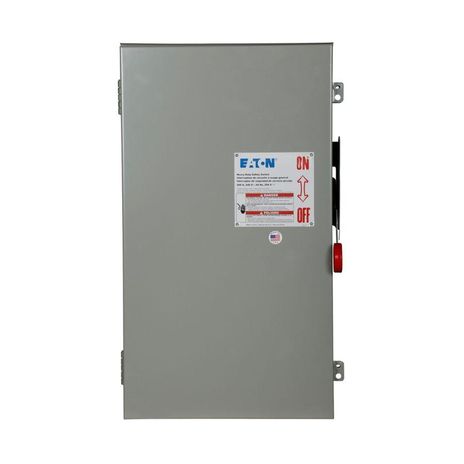

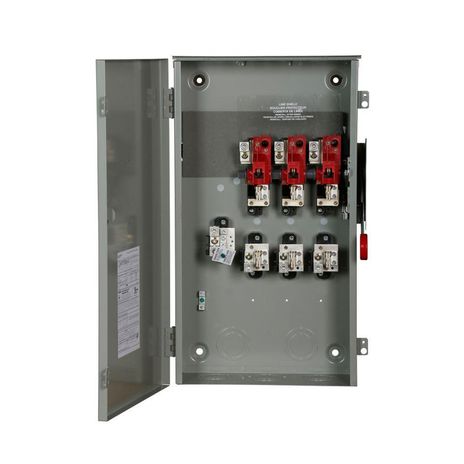

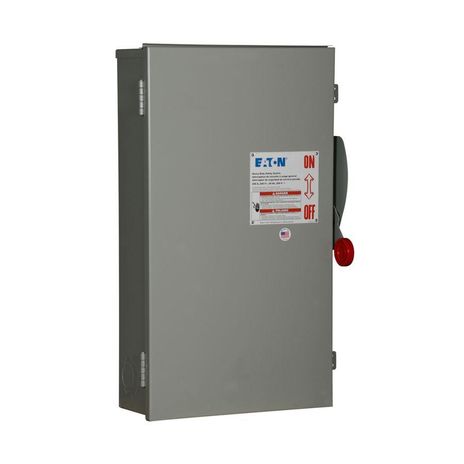

Eaton DH324NRK
SKU: CS4849796MPN: DH324NRKUPC/EAN: 782113206691
Eaton heavy duty fusible safety switch
$943.22
UnitAvailable on backorder
Product Details
Eaton Enhanced visible blade single-throw safety switch, 200 A, NEMA 3R, Painted galvanized steel, Class H, Neutral, Three-pole, Four-wire, 240 V, #6-250 kcmil Cu/Al
Attributes
| Amperage Rating | 200A |
| Enclosure | NEMA 3R |
| Enclosure Material | Painted galvanized steel |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible with neutral |
| Hp Rating Max | 15 at 240 Vac Std. 1 Ph, 25 at 240 Vac Std. 3 Ph, 15 at 240 Vac TD 1 Ph, 60 at 240 Vac TD 3 Ph, 40 at 250 Vdc |
| Nema Rating | NEMA 3R |
| Neutral | Included |
| Number Of Poles | Three-pole |
| Number Of Wires | 4 |
| Product Category | Heavy Duty, Fusible with neutral |
| Type | Heavy duty fusible safety switch |
| Voltage Rating | 240V |
| Voltage Rating Uom | AMP |
| Window | No Window |
| Wire Size | #6 AWG-250 kcmil Cu/Al |
Specifications
| SKU | CS4849796 |
|---|---|
| MPN | DH324NRK |
| UPC/EAN | 782113206691 |
