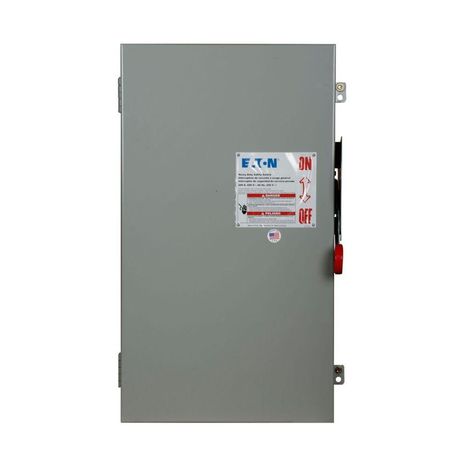

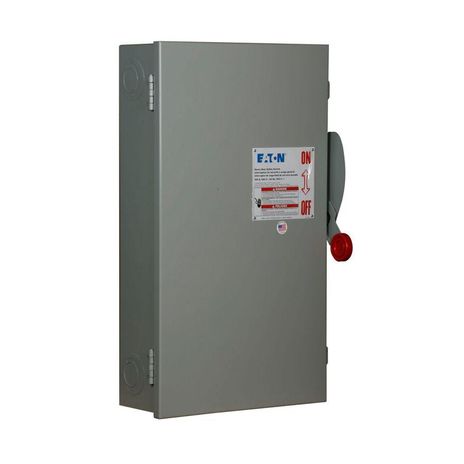

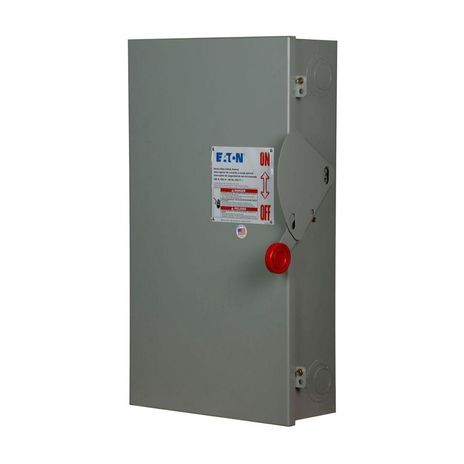

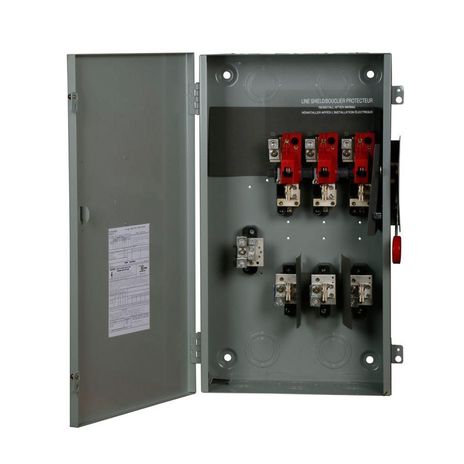

Eaton DH364NGK
SKU: CS2770753MPN: DH364NGKUPC/EAN: 782113206820
Eaton heavy duty fusible safety switch
$1,002.74
UnitAvailable on backorder
Product Details
Eaton Heavy duty single-throw fused safety switch, 200 A, NEMA 1, Painted steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 50, 50/ 125, 150 hp (⅓PH @480, 600 V), #6-250 kcmil Cu/Al
Attributes
| Amperage Rating | 200A |
| Enclosure | NEMA 1 |
| Enclosure Material | Painted steel |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible with neutral |
| Hp Rating Max | 50, 50/ 125, 150 hp (⅓PH @480, 600 V) |
| Nema Rating | NEMA 1 |
| Neutral | Included |
| Number Of Poles | Three-pole |
| Number Of Wires | 4 |
| Product Category | Heavy Duty, Fusible with neutral |
| Type | Heavy duty fusible safety switch |
| Voltage Rating | 600 V |
| Voltage Rating Uom | INH |
| Window | No Window |
Specifications
| SKU | CS2770753 |
|---|---|
| MPN | DH364NGK |
| UPC/EAN | 782113206820 |
