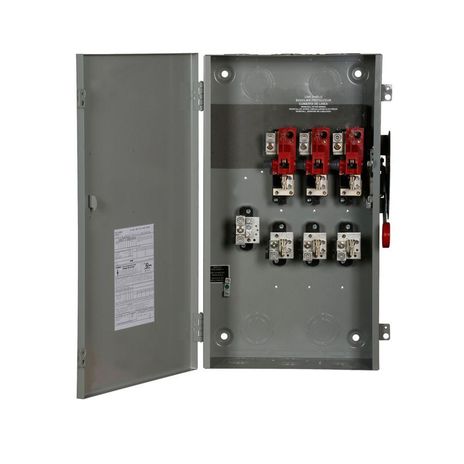

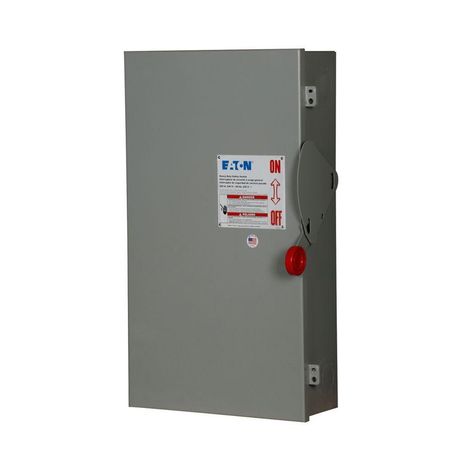

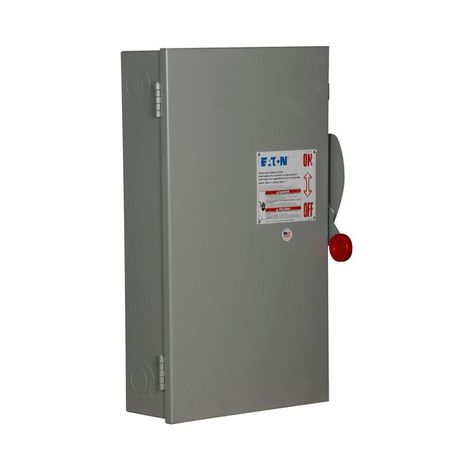

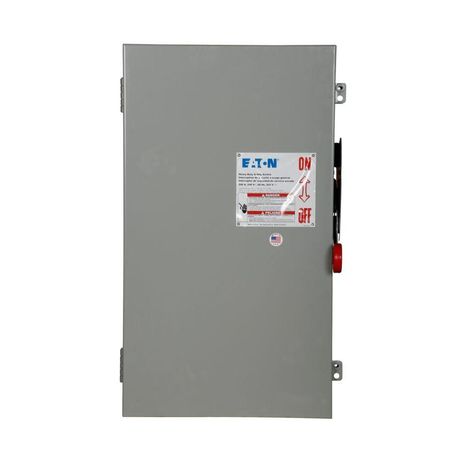

Eaton DH324NGK
SKU: CS4126778MPN: DH324NGKUPC/EAN: 782113206684
Eaton heavy duty fusible safety switch
$780.08
UnitAvailable on backorder
Product Details
Eaton Heavy duty single-throw fused safety switch, 200 A, NEMA 1, Painted steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 15, 25/ 15, 60/ 40 hp (1,3PH @Std/TD/250 Vdc), #6-250 kcmil Cu/Al
Attributes
| Amperage Rating | 200A |
| Enclosure | NEMA 1 |
| Enclosure Material | Painted steel |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible with neutral |
| Hp Rating Max | 15, 25/ 15, 60/ 40 hp (1,3PH @Std/TD/250 Vdc) |
| Nema Rating | NEMA 1 |
| Neutral | Included |
| Number Of Poles | Three-pole |
| Number Of Wires | 4 |
| Product Category | Heavy Duty, Fusible with neutral |
| Type | Heavy duty fusible safety switch |
| Voltage Rating | 240V |
| Voltage Rating Uom | AMP |
| Window | No Window |
| Wire Size | #6 AWG-250 kcmil Cu/Al |
Specifications
| SKU | CS4126778 |
|---|---|
| MPN | DH324NGK |
| UPC/EAN | 782113206684 |
