Eaton DG1-32012FB-C54C

Name: Eaton DG1-32012FB-C54C
Brand: Eaton
SKU: CS4848266
Price: 2321.89 USD
Availability: OutOfStock

SKU: CS4848266MPN: DG1-32012FB-C54CAlternate Part #: 9701-2102-00PUPC/EAN: 786685927619

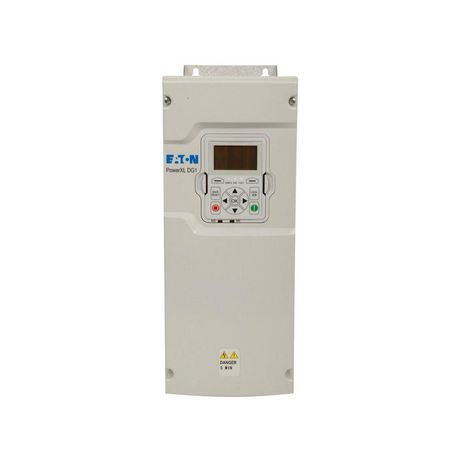

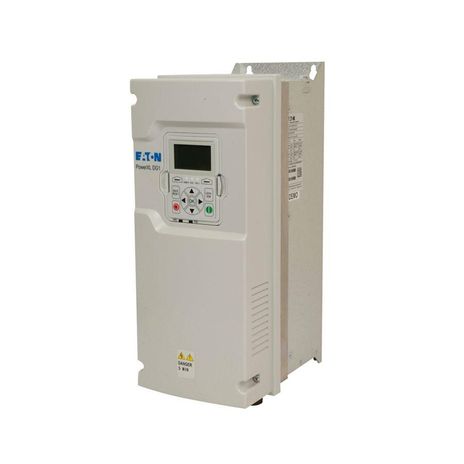

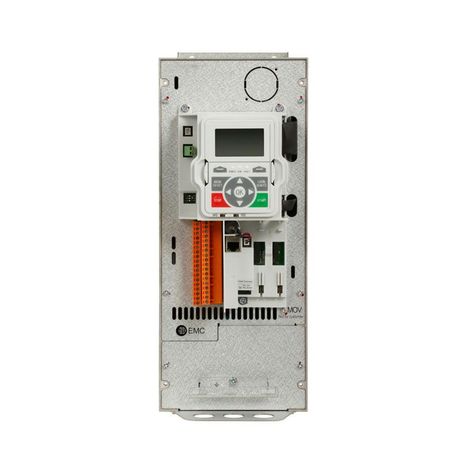

Eaton PowerXL DG1 variable frequency drive

Eaton DG1-32012FB-C21C, DG1-32012FB-C54C, DG1-32017FB-C21C, DG1-32017FB-C54C, DG1-32025FB-C21C, DG1-32025FB-C54C, DG1-34012FB-C54C, DG1-34016FB-C21C, DG1-34016FB-C54C, DG1-34023FB-C21C, DG1-34023FB-C54C, DG1-34031FB-C21C

Product Details

Eaton PowerXL DG1 variable frequency drive, 380-500V input 3 kW 5 Hp VT 3PH 50/60 Hz 12.5A output IP54/type 12 FR2 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots Brake chopper

Attributes

Brake Chopper	Brake chopper
Communication	EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU communication
Communications Onboard	EtherNet/IP, Modbus TCP, RS-485: Modbus RTU, BACnet MS/TP
Conformal Coated Boards	Yes
Display	LCD graphical
Electromagnetic Compatibility Filter	EMC Filter
Enclosure	IP54/type 12
Frame Size	2
Frequency Rating	50-60 Hz
High Overload Ct Amps	12 A
High Overload Ct Kw	3 kW
Horsepower	5 hp
Input Frequency Range	50 - 60 Hz
Input Voltage	400 V, 380-500 V(-15%, +10%)
Input Voltage Range	208 - 240 V
Internal Dc Choke	Yes
Keypad	Included
Low Overload Vt Amps	17.5 A
Low Overload Vt Hp	5 hp
Low Overload Vt Kw	3.7 kW
Material	Coated board
Max Overload	110% for 1 minute
Motor Control Modes	Frequency, Speed, Open-loop speed, Open-loop torque
Motor Type	Inductio, PM (IPM & SPM)
Number Of Slots	2 expansion slots
Output Current Max	12.5 A
Output Frequency Range	0 - 400 Hz
Phase	Three-phase in, three-phase out
Power Consumption	3 kW
Protection	Internal EMC filter, DC choke
Recommended Fuse Size	20
Software	Active energy control, quick start wizard
Torque Rating	VT
User Interface	Graphical Keypad
