Eaton DG1-324D8FB-C54C

Name: Eaton DG1-324D8FB-C54C
Brand: Eaton
SKU: CS4848308
Price: 1478.21 USD
Availability: OutOfStock

SKU: CS4848308MPN: DG1-324D8FB-C54CAlternate Part #: 9701-1104-00PUPC/EAN: 786685927572

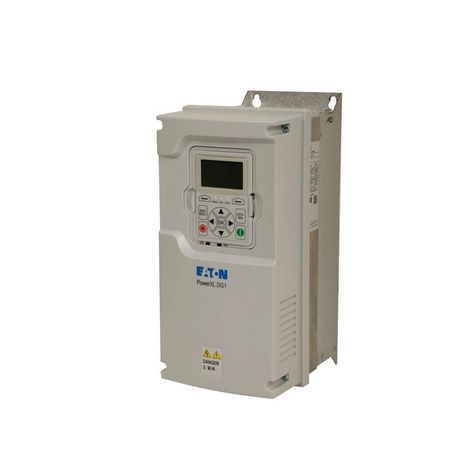

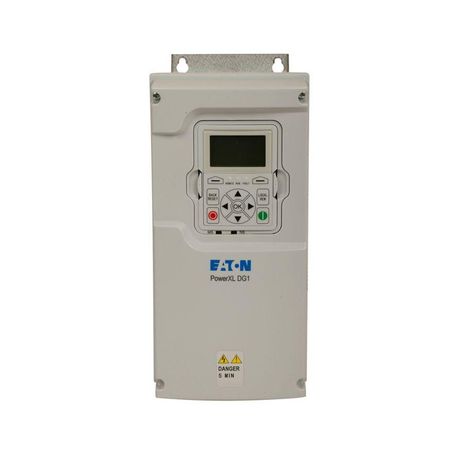

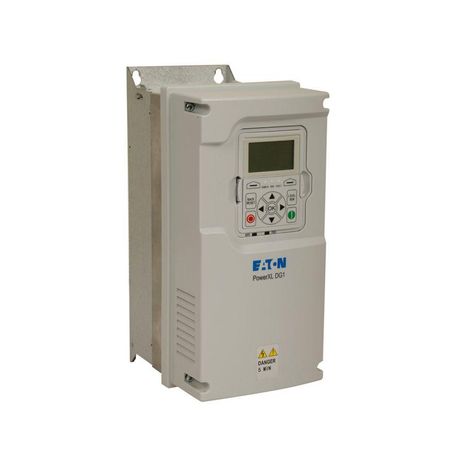

Eaton PowerXL DG1 variable frequency drive

Eaton DG1-32011FB-C21C, DG1-32011FB-C54C, DG1-323D7FB-C21C, DG1-323D7FB-C54C, DG1-324D8FB-C21C, DG1-324D8FB-C54C, DG1-326D6FB-C21C, DG1-326D6FB-C54C, DG1-327D8FB-C21C, DG1-327D8FB-C54C, DG1-34012FB-C21C, DG1-342D2FB-C54C, DG1-343D3FB-C21C, DG1-343D3FB-C54C, DG1-344D3FB-C21C

Product Details

Eaton PowerXL DG1 variable frequency drive, 208-240V input 0.75 kW 1 Hp CT 3PH 50/60 Hz 4.8A output IP54/type 12 FR1 LCD Internal EMC filter and DC choke EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU ports 2 exp slots Brake chopper

Attributes

Brake Chopper	Brake chopper
Communication	EtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU communication
Communications Onboard	EtherNet/IP, Modbus TCP, RS-485: Modbus RTU, BACnet MS/TP
Conformal Coated Boards	Yes
Display	LCD graphical
Electromagnetic Compatibility Filter	EMC Filter
Enclosure	IP54/type 12
Frame Size	1
Frequency Rating	50-60 Hz
High Overload Ct Amps	4.8 A
High Overload Ct Hp	1 hp
High Overload Ct Kw	.75 kW
Horsepower	1 hp
Input Frequency Range	50 - 60 Hz
Input Voltage	230 V, 208-240 V(-15%, +10%)
Input Voltage Range	208 - 240 V
Internal Dc Choke	Yes
Keypad	Included
Low Overload Vt Amps	6.6 A
Low Overload Vt Hp	1.5 hp
Low Overload Vt Kw	1.1 kW
Material	Coated board
Max Overload	110% for 1 minute
Motor Control Modes	Frequency, Speed, Open-loop speed, Open-loop torque
Motor Type	Inductio, PM (IPM & SPM)
Number Of Slots	2 expansion slots
Output Current Max	4.8 A
Output Frequency Range	0 - 400 Hz
Phase	Three-phase in, three-phase out
Power Consumption	0.75 kW
Protection	Internal EMC filter, DC choke
Recommended Fuse Size	10
Software	Active energy control, quick start wizard
Torque Rating	CT
User Interface	Graphical Keypad
