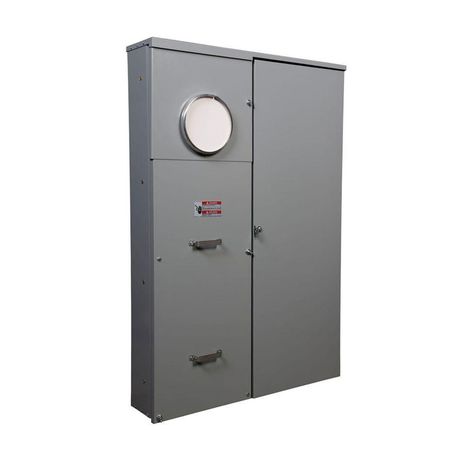

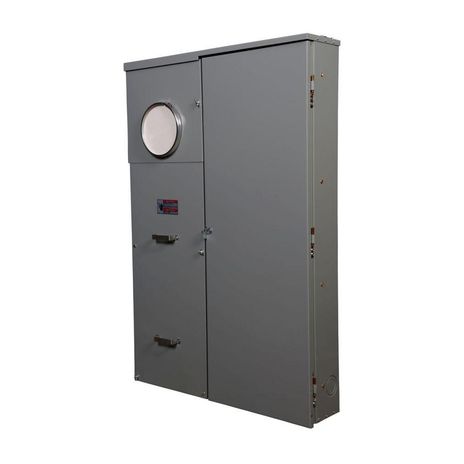

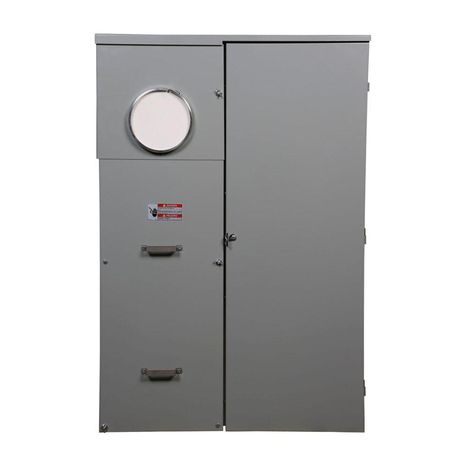

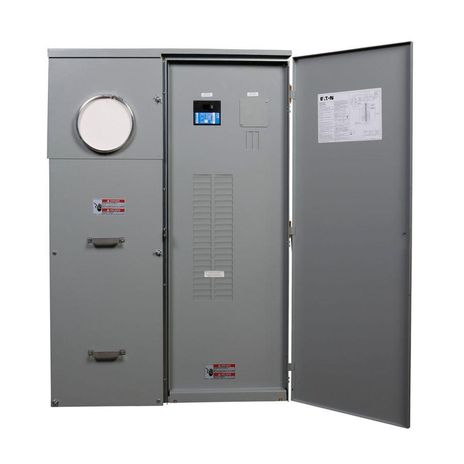

Eaton CG403242SH
SKU: CS4838642MPN: CG403242SHUPC/EAN: 782114231814
Eaton house panel
$5,697.33
UnitAvailable on backorder
Product Details
Eaton house panel, 400A, Aluminum, No bypass, NEMA 3R, Underground, 22 kAIC, Lug landings for compression, lugs not included, CSR2200N, Surface mounting, Circuits: 42, Sockets: 1, Spaces: 32, CSR, Ring, Type CH breakers, 120/240V, 4314
Attributes
| Amperage Rating | 400 A |
| Bus Material | Aluminum |
| Enclosure | NEMA 3R |
| Feed Type | Bottom |
| Interrupt Rating | 10 kAIC |
| Line | Lug landings for compression, lugs not included |
| Main Circuit Breaker | CSR2200N |
| Mounting | Surface |
| Number Of Circuits | 42.0000 |
| Number Of Sockets | 1.0000 |
| Number Of Spaces | 32.0000 |
| Secondary Circuit Breaker | CSR |
| Security | Ring |
| Type | House panel |
| Used With | Type CH breakers |
| Voltage Rating | 120/240 V |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS4838642 |
|---|---|
| MPN | CG403242SH |
| UPC/EAN | 782114231814 |
You may also like

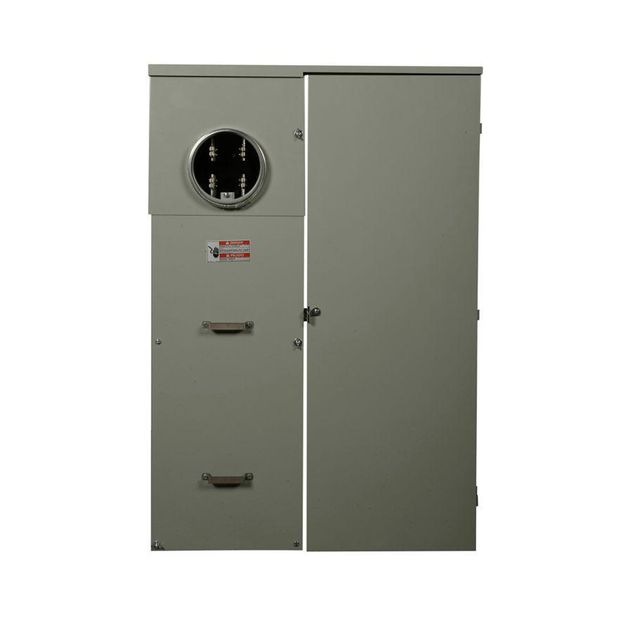

Eaton CG1212P400BS
Contact us for pricing and availability

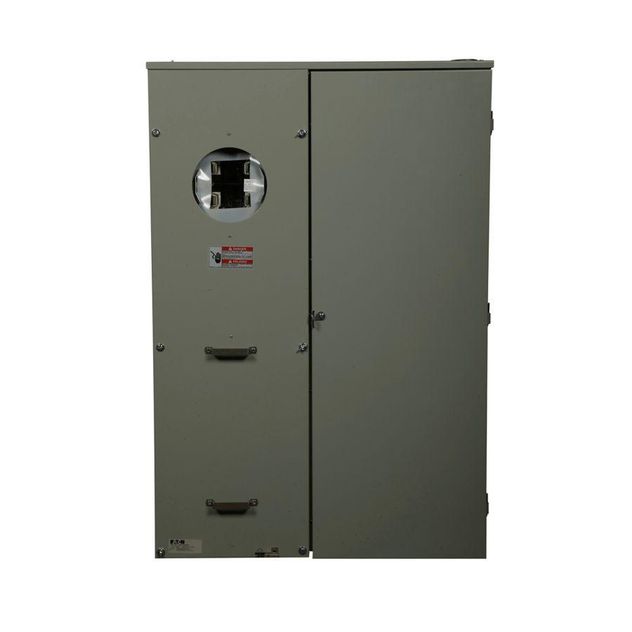

Eaton CG1212P400BSL
