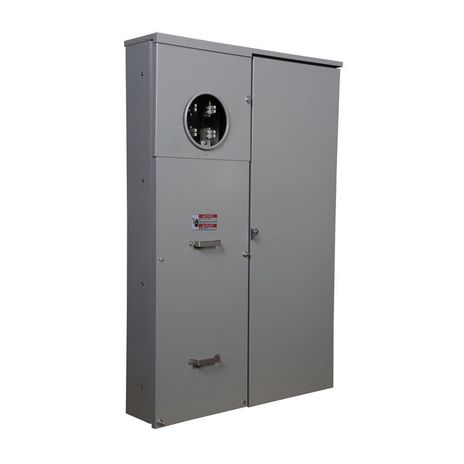

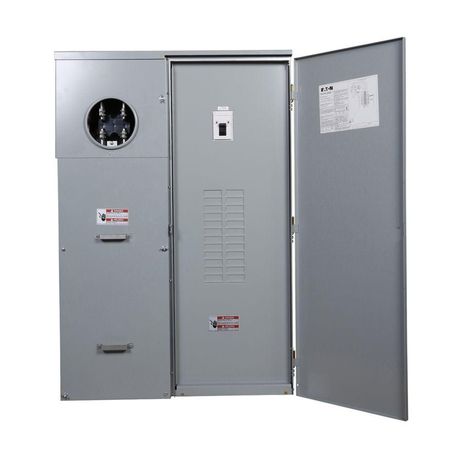

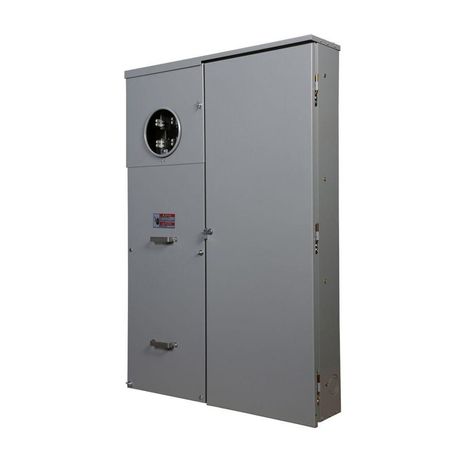

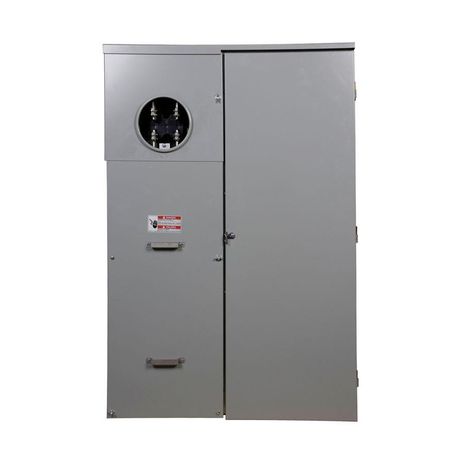

Eaton HP40
SKU: CS4885995MPN: HP40UPC/EAN: 786676883306
Eaton house panel
$6,809.19
UnitAvailable on backorder
Product Details
Eaton house panel, 400A, Aluminum, No bypass, NEMA 3R, Underground, 22 kAIC, Lug landings for compression, lugs not included, DK2400, Surface mounting, Sockets:1, None, Ring, Type BR breakers, 120/240V, 4306, Single-phase
Attributes
| Amperage Rating | 400 A |
| Bus Material | Aluminum |
| Enclosure | NEMA 3R |
| Feed Type | Bottom |
| Interrupt Rating | 10 kAIC |
| Line | Lug landings for compression, lugs not included |
| Main Circuit Breaker | DK2400 |
| Mounting | Surface |
| Number Of Sockets | 1.0000 |
| Number Of Spaces | 42.0000 |
| Security | Ring |
| Type | House panel |
| Used With | Type BR breakers |
| Voltage Rating | 120/240 V |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS4885995 |
|---|---|
| MPN | HP40 |
| UPC/EAN | 786676883306 |
