Square D XUYFLNEP40002

Name: Square D XUYFLNEP40002
Brand: Square D
SKU: CS4814150
Availability: OutOfStock

SKU: CS4814150MPN: XUYFLNEP40002

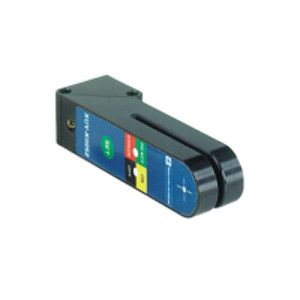

Photoelectric sensors XU, XUY, fork, laser, pot +/-, 2X42mm, 12...24 VDC, M8

Product Details

PHOTOELECTRIC FORK SENSOR

Ambient Air Temperature For Operation	-20-60 °C
Ambient Air Temperature For Operation 1	-20-60 °C
Ambient Air Temperature For Storage	-30-80 °C
Detection System	thru beam
Discrete Output Function	1 NO or 1 NC programmable
Discrete Output Type	PNP and NPN
Electronic Sensor Type	photo-electric sensor
Enclosure Material	painted aluminium and polyamide/glass
Keypad Type	green
Load Capacitance	330 nF
Material	metal/plastic
Minimum Object Diameter For Detection	0.05 mm
Output Type	solid state
Product Certifications	CE# #cULus
Product Specific Application	detection on vibrating rail# #detection on small conveyor# #detection of reference marks# #detection of transparent object
Range Of Product	Telemecanique Photoelectric sensors XU
Sensor Design	fork
Sensor Name	XUY
Series Name	Application
Setting Up	sensitivity by numeric potentiometer
Supply Circuit Type	DC
Switching Frequency	10 kHz
Time Response	-20-20 µs
Type Of Output Signal	discrete
Wiring Technique	4-wire
