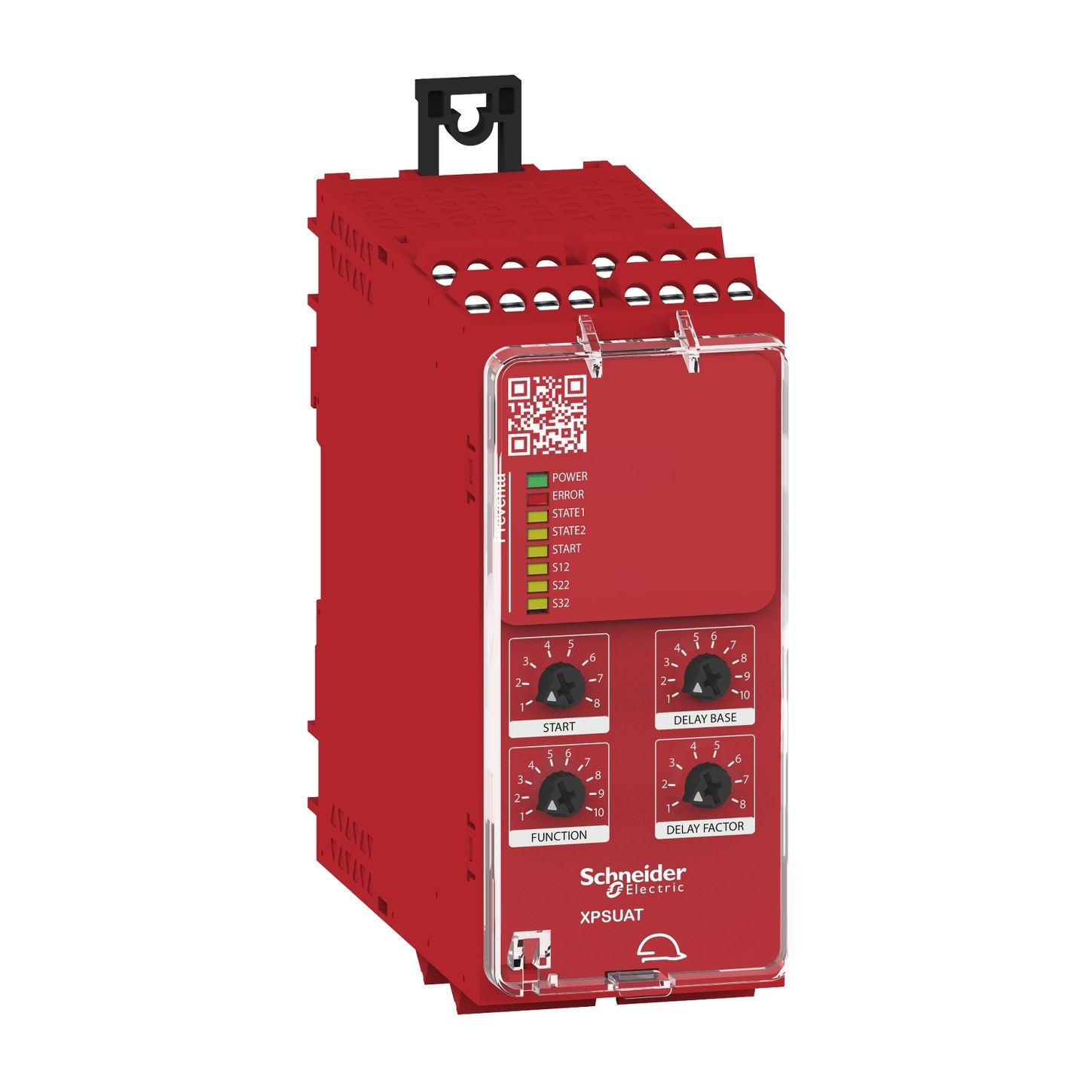

Square D XPSUAT13A3AP

Name: Square D XPSUAT13A3AP
Brand: Square D
SKU: CS4814092
Price: 536.39 USD
Availability: OutOfStock

SKU: CS4814092MPN: XPSUAT13A3AP

safety module, Harmony XPSU, Cat4, features XPSUAK with delayed outputs, 24V AC or DC, screw

$536.39

Unit

Available on backorder

Quantity

remove

add

Product Details

Preventa module Cat.4 features XPSUAK + delayed outputs 24 VAC/DC screw

Ith Conventional Free Air Thermal Current	16 A
Ambient Air Temperature For Storage	-25-85 °C
Electrical Circuit Type	NC pair# #PNP pair# #antivalent pair# #OSSD pair
Function Of Module	emergency stop button with 2 NC contacts# #guard monitoring with 1 or 2 limit switches# #monitoring 2 PNP sensors# #magnetic switch monitoring# #light curtain monitoring# #RFID switch# #monitoring of electro-sensitive protection equipment (ESPE)# #sensing
Input Protection Type	internal, electronic
Maximum Line Resistance	500 Ohm
Maximum Response Time On Input Open	20 ms
Mounting Support	35 mm symmetrical DIN rail
Product Certifications	TÜV# #cULus
Product Or Component Type	safety module
Range Of Product	Harmony Safety Automation
Safety Module Application	monitoring antivalent contacts# #for emergency stop, guard and light curtain monitoring# #monitoring of pressure-sensitive 4-wire protective devices
Safety Module Name	XPSUAT
Synchronisation Time Between Inputs	0.5 s# #2 s# #4 s
Type Of Start	automatic/manual/monitored
