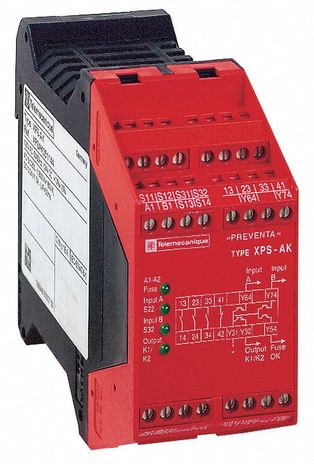

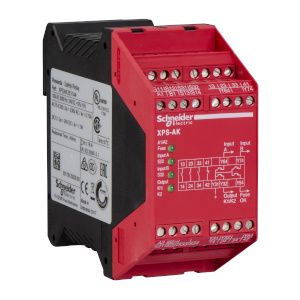

Square D XPSAR351144P

Name: Square D XPSAR351144P
Brand: Square D
SKU: CS1679557
Availability: OutOfStock

SKU: CS1679557MPN: XPSAR351144P

module XPSAR - Emergency stop - 115 V AC

Product Details

Module XPSAR - Emergency stop - 115 V AC

Ith Conventional Free Air Thermal Current	40 A
Ambient Air Temperature For Operation	-10-55 °C
Ambient Air Temperature For Operation 1	-10-55 °C
Ambient Air Temperature For Storage	-25-85 °C
Function Of Module	emergency stop monitoring 1-channel wiring# #emergency stop with 2 NC contacts monitoring 2-channel wiring# #monitoring of electro-sensitive protection equipment (ESPE)# #monitoring of a movable guard associated with 2 switches and automatic start# #multi
Input Protection Type	internal, electronic
Maximum Response Time On Input Open	20 ms
Mounting Support	35 mm symmetrical DIN rail
Product Certifications	CSA# #UL# #TÜV
Product Or Component Type	Preventa safety module
Range Of Product	Preventa Safety automation
Safety Module Application	for emergency stop, switch and safety light curtain monitoring
Safety Module Name	XPSAR
Standards	EN/ISO 13850# #EN/IEC 60204-1# #EN 1088/ISO 14119# #EN/IEC 60947-5-1
Supply Frequency	50/60 Hz
Synchronisation Time Between Inputs	100 ms
Type Of Start	configurable
